When electrical systems fail, the damage can be catastrophic—destroying equipment, causing fires, and even risking lives. Fuses, though small and often overlooked, serve as critical guardians against these dangerous overloads and short circuits.

A fuse is a sacrificial electrical safety device¹ containing a metal wire or strip that melts when too much current flows through it, interrupting the circuit and preventing damage to equipment. Fuses work by providing a deliberate "weak link" designed to fail safely before other components can be damaged.

In my years working with electrical protection components, I've noticed fuses are perhaps the most underappreciated components in electrical design. Many engineers treat them as an afterthought when they should be foundational to any protection strategy. Let me walk you through what makes these simple yet crucial devices so important for electrical safety.

What Do Fuse Symbols Mean in Electrical Diagrams?

Reading electrical diagrams can be confusing when you don't understand the symbols. The simple line with a break in the middle represents a basic fuse, but newer diagrams use more specific symbols that can tell you exactly what type of protection you're working with.

Fuse symbols in electrical diagrams typically show a line with a break or circle in the middle. Standard IEC symbols show a rectangular box, while specialized fuses like semiconductor or thermal types have unique identifiers. These symbols help engineers quickly identify protection points in complex electrical systems.

I often find that engineers miss critical information hidden in these seemingly simple symbols. The basic fuse symbol (a line with a break) has evolved significantly over time. Modern electrical diagrams now use specialized symbols that convey much more information about the fuse's characteristics:

• IEC Standard Symbols²: Usually shown as rectangular boxes with specific internal markings
• ANSI/IEEE Symbols: Often include additional information like voltage ratings
• Application-Specific Symbols: Semiconductor fuses, thermal fuses, and resettable fuses each have unique identifiers

Understanding these symbols isn't just about reading diagrams correctly—it directly impacts installation safety. I've seen cases where misinterpreting a symbol led to installing the wrong fuse type, resulting in inadequate protection. The difference between a fast-acting and time-delay symbol might seem minor on paper, but in real-world applications, it can mean the difference between proper protection and catastrophic failure.

When training new technicians, I always emphasize that these symbols aren't arbitrary—they're a standardized language that communicates critical safety information across international boundaries, regardless of the text language in the documentation.

What Features Make Fuses Effective Protection Devices?

When equipment fails suddenly, you wonder if better protection could have prevented the damage. Fuses offer unique protection features that circuit breakers often can't match, including faster response times and no moving parts to wear out or fail.

Fuses provide effective protection through current-responsive metal elements³ that melt precisely when current exceeds safe levels. Their key features include predictable response times⁴, inability to be reset (ensuring issues are addressed), high interrupting ratings⁵, and no maintenance requirements, making them reliable first-line defense mechanisms.

What consistently surprises me in customer conversations is how even experienced engineers tend to focus exclusively on amperage ratings while overlooking critical parameters like I²t curves and voltage drop characteristics. These less obvious features significantly impact system performance and safety:

Current Limitation

Fuses don't just interrupt current—they actively limit it during fault conditions. This current-limiting action happens in milliseconds, much faster than most circuit breakers can respond. In high-fault situations, this rapid response can mean the difference between contained damage and catastrophic failure.

Breaking Capacity

Modern fuses can safely interrupt extremely high fault currents—some rated for 200,000 amperes or more. This far exceeds what many circuit breakers can handle, especially in compact installations where space limitations restrict breaker size.

Selectivity and Coordination

In well-designed systems, fuses create what we call "selective coordination⁶," where only the protection device closest to the fault operates. This minimizes disruption by isolating only the affected circuit rather than shutting down entire systems.

Temperature Performance

Fuses maintain their characteristics across a wide temperature range, unlike some electronic protection devices that can drift in performance as ambient conditions change. This makes them particularly valuable in harsh industrial environments or outdoor installations where temperatures fluctuate dramatically.

I've found that understanding these features isn't just technical minutiae—it directly impacts system reliability, maintenance costs, and safety outcomes. When I explain these advantages to clients, they often reconsider their protection strategies to take better advantage of fuse capabilities in conjunction with other protective devices.

What Types of Fuses Are Available for Different Applications?

Choosing the wrong fuse type can lead to equipment damage or unnecessary downtime. The difference between a blade-type automotive fuse and an industrial cartridge fuse isn't just physical—it reflects fundamentally different protection philosophies and capabilities.

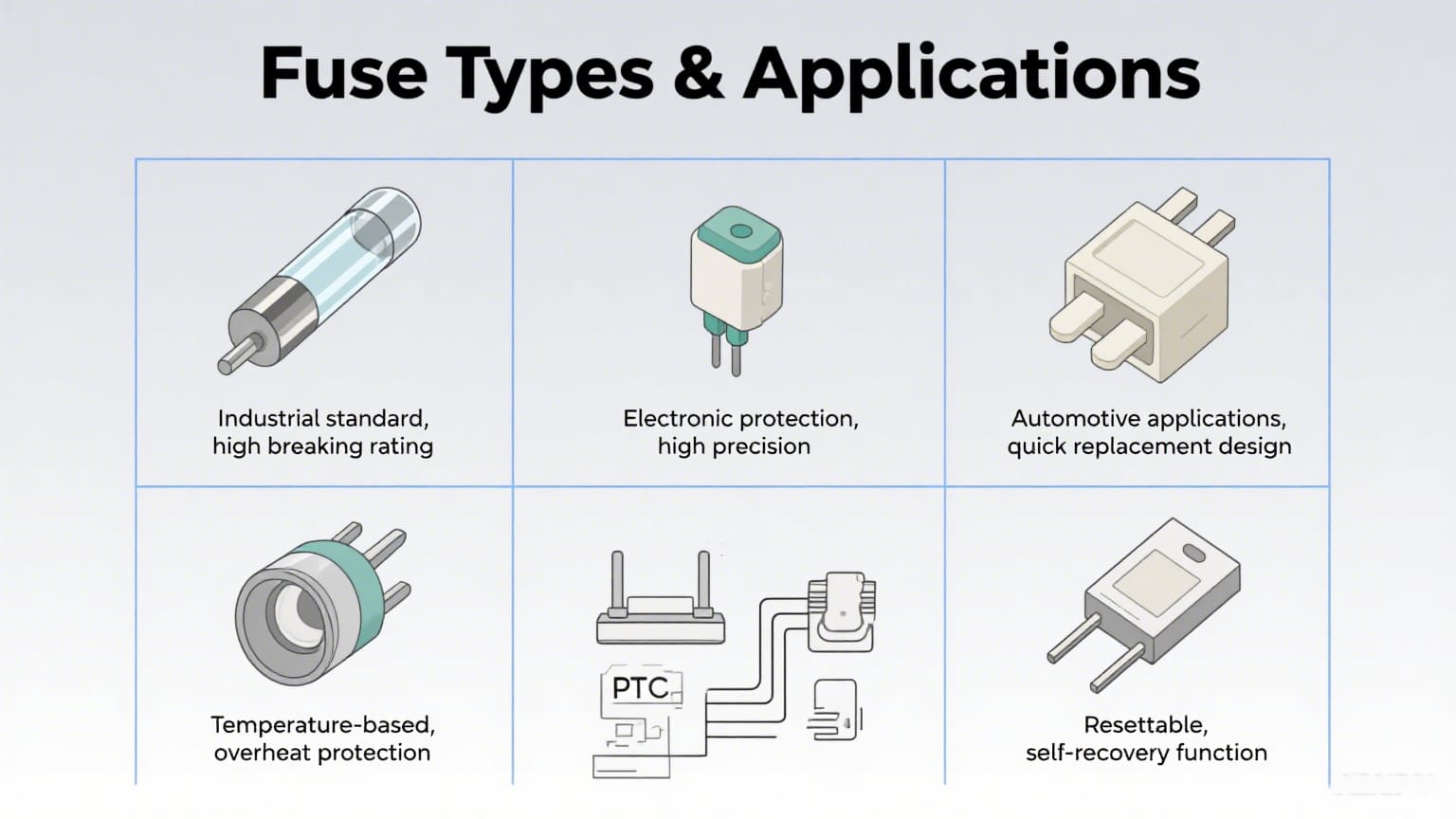

Fuses come in several main types: cartridge fuses⁷ (industrial standard with high interrupting ratings), blade fuses (automotive applications), semiconductor fuses (electronic protection), thermal fuses (temperature-based), and resettable PTC fuses⁸. Each type has specialized characteristics for specific applications, including different response times, physical formats, and breaking capacities.

My experience has taught me that understanding the subtle differences between fuse technologies makes the difference between reliable protection and equipment failure. Let me break down the major fuse categories and their applications:

Cartridge Fuses

These industrial workhorses come in various sizes and ratings, from tiny 5×20mm glass tubes to large 22×58mm high-capacity models. Their standardization across markets makes them versatile and widely available.

Ceramic vs. Glass Bodies

• Ceramic bodies offer higher interrupting ratings and withstand more severe fault conditions
• Glass bodies allow visual verification of fuse status but have lower breaking capacity⁹
• Ceramic fuses typically operate at higher voltage ratings (up to 1000V AC/DC)

Time-Response Variations

Fuses aren't just about current ratings—their time-response characteristics are equally important:

Special Application Fuses

Some applications require highly specialized fuse designs:

• DC-rated fuses¹⁰ for solar and battery systems (special arc quenching)
• High-speed semiconductor fuses (protecting expensive power electronics)
• Medium voltage fuses (distribution system protection)

I've seen installations where standard AC fuses were mistakenly used in DC applications, creating dangerous situations because DC arcs are much harder to extinguish. This highlights why understanding fuse type selection goes beyond simple amperage ratings—it requires considering the entire application environment.

Where Are Fuses Applied and What Advantages Do They Offer?

Installing protection without understanding the specific advantages of fuses can leave systems vulnerable. Many engineers default to circuit breakers without considering how fuses' unique characteristics might better protect certain applications.

Fuses are applied in residential electrical panels, automotive systems, industrial machinery, power distribution networks, and electronic devices. Their advantages include faster response to short circuits (under 1/4 cycle), higher interrupting ratings, smaller footprint, better current limitation¹¹, and inherent reliability due to having no moving parts to fail or maintenance requirements.

I've found that the most reliable installations result when fuses are selected as part of a coordinated protection approach rather than in isolation. While many engineers consider circuit breakers and fuses as interchangeable protection options, they each offer distinct advantages in specific scenarios:

Industrial Applications

In industrial settings, fuses excel at protecting:

• Motor circuits where high starting currents require time-delay characteristics¹²
• Transformers that need protection from secondary short circuits
• Control circuits where precise protection coordination prevents cascading failures

The economic advantages here are substantial—while the initial cost of a fuse might be comparable to a small circuit breaker, the ability to withstand repeated operations without degradation and the absence of maintenance requirements significantly reduce total ownership costs.

New Energy Applications

The rise of solar, wind, and battery storage systems has created new protection challenges that fuses are uniquely positioned to address:

• DC circuit protection where standard breakers struggle to extinguish arcs
• Bidirectional current flow in battery systems
• Specialized string protection in photovoltaic arrays

Our customers in the renewable energy sector particularly value fuses for their compact size and high DC voltage ratings¹³—critical in space-constrained installations like solar combiners and battery racks.

Integration Advantages

Modern electrical systems often combine fuses with other protection methods:

• Fuse-switch combinations that provide visible isolation and protection
• Hybrid systems using electronic trip units with fuses as backup protection
• Modular systems where fuse holders integrate with DIN rail components

This integrated approach maximizes safety while minimizing space requirements and installation complexity—something I emphasize when helping customers design new systems or upgrade existing ones.

Conclusion

Fuses may be simple devices, but they provide sophisticated protection critical to electrical safety. By understanding their symbols, features, types, and applications, you can make informed decisions that enhance system reliability and prevent costly failures.
