Solar arrays generate significant DC power. Faults can cause fires or damage, jeopardizing your investment and safety. Optimized protection prevents these costly risks.
Optimized safety is crucial for PV systems. It uses specialized DC components like fuses and disconnects to prevent fires, protect panels/inverters from overcurrents/faults, ensure reliable energy generation, and meet mandatory safety regulations for solar installations.
Solar power is expanding rapidly worldwide, which is fantastic news for renewable energy. However, the unique nature of high-voltage DC power generated by PV systems introduces safety challenges often underestimated. I remember consulting on a project where overlooked DC protection led to a near-miss fire incident in a combiner box – a stark reminder. Let's delve into why robust, optimized safety isn't just recommended, it's absolutely essential for any solar installation.
What Dangers Lurk in Unprotected Solar Arrays?
Thinking solar electrical faults are rare or minor? An unprotected array risks serious fires, expensive equipment damage, and even electric shock. Ignoring dedicated DC safety measures can lead to catastrophic system failures.
Unprotected solar arrays face critical risks including DC arc faults igniting fires, overcurrents destroying panels and inverters, reverse currents damaging cells in parallel strings, and severe electric shock hazards during faults or maintenance.
Photovoltaic systems operate with direct current (DC), often at high voltages. This presents different, and often greater, risks compared to standard AC electrical systems. Understanding these specific dangers highlights the need for specialized protection. The constant nature of DC makes faults particularly hazardous if not managed correctly.
DC Arc Faults
One of the most significant dangers is the DC arc fault. Unlike AC arcs that may self-extinguish when the voltage crosses zero, DC arcs are sustained. They generate intense heat (thousands of degrees Celsius) that can easily melt insulation, ignite surrounding materials, and cause devastating fires within panels, wiring, or combiner boxes. Detecting and interrupting these arcs requires specialized equipment.
Overcurrent Damage
Faults, such as short circuits caused by damaged wiring or faulty components, can lead to currents far exceeding the normal operating levels. Without proper protection like DC fuses, this overcurrent can quickly overheat wiring, damage or destroy expensive solar panels, and severely damage or ruin inverters.
Reverse Current Issues
In systems with multiple strings of panels connected in parallel, faults (like heavy shading or short circuits in one string) can cause current to flow backward from healthy strings into the faulty one. This reverse current can overheat and permanently damage the cells in the affected panels, reducing the overall system output and lifespan.
| Hazard Type | Description | Potential Consequence |
|---|---|---|
| DC Arc Fault | Sustained electrical arc due to fault/bad connection | Intense heat, melting, fire in panels/boxes/wiring |
| Overcurrent | Current exceeds safe operating levels (short circuit) | Wiring overheat, panel damage, inverter failure |
| Reverse Current | Current flows backward into a faulty/shaded string | Panel overheating, cell damage, reduced output |
| Ground Fault | Unintended connection between DC circuit & ground | Shock hazard, system malfunction, potential fire |
| Shock Hazard | Contact with energized DC components | Severe injury or fatality during maintenance/faults |
I've seen insulation breakdown lead to arcs firsthand; the speed at which damage occurs is alarming. Proper protection isn't just about compliance; it's about preventing these very real and dangerous scenarios.
Which Components Provide Optimized DC Protection for PV?
Need reliable PV protection but unsure which parts to specify? Using standard AC circuit breakers or fuses in DC solar circuits is a common mistake that invites trouble. Optimized safety requires specialized DC components.
Optimized DC protection uses components specifically designed and rated for PV applications. Key items include gPV-rated DC fuses (per IEC 60269-6), suitable DC fuse holders/bases, DC-rated switch disconnectors for safe isolation, and often DC Surge Protection Devices (SPDs).
Building a safe and reliable PV system means selecting the right protective devices for each critical point in the DC circuit, from the panels themselves to the inverter input. These components must handle the specific stresses of DC power and the solar environment.
String Level Protection
Individual strings (series of connected panels) require overcurrent protection, typically using DC fuses specifically designed for photovoltaic applications.
- gPV Fuses (IEC 60269-6): These fuses are crucial. They are designed to safely interrupt DC fault currents typical in solar arrays and possess time-current characteristics suitable for protecting panels from both overloads and reverse currents without nuisance tripping under normal conditions. Their DC voltage rating must match or exceed the maximum system voltage.
- DC Fuse Holders/Bases: These securely house the gPV fuses, ensuring proper connection and providing electrical insulation. They need to be rated for the system's DC voltage and current.
Combiner Box Safety & Isolation
Combiner boxes aggregate multiple strings. They are key locations for protection and isolation.

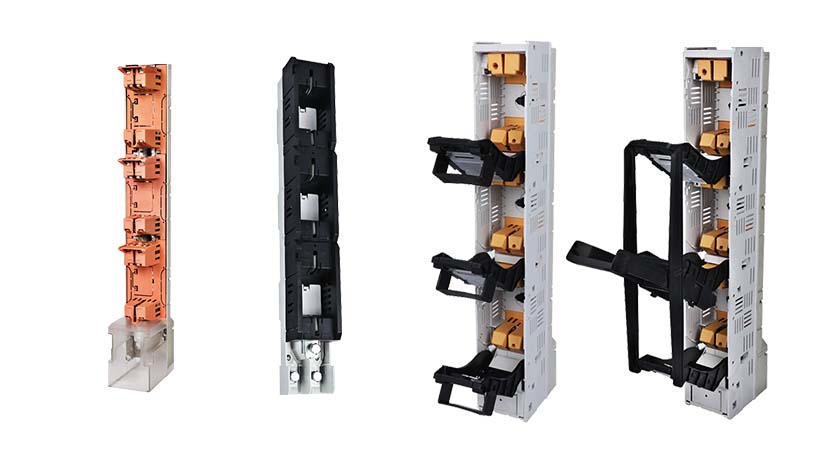

- DC Switch Disconnectors: These allow manual isolation of strings or the entire array from the inverter. They must be DC-rated for the voltage and current, providing a visible break for safe maintenance. Fuse switch disconnectors combine isolation and fusing in one unit, saving space and simplifying wiring. Our vertical fuse switch disconnectors are often used here for their DC performance and compact footprint.
Surge Mitigation
External surges (like lightning) can damage sensitive equipment.
- DC Surge Protection Devices (SPDs): Installed on the DC side, SPDs divert voltage spikes safely to ground, protecting the inverter and panels.
| Component | Primary PV Function | Key Feature / Standard | Location Example |
|---|---|---|---|
| gPV DC Fuse | String overcurrent & reverse current protection | IEC 60269-6 rating, DC V/A rating | In-line or Combiner Box |
| DC Fuse Holder/Base | Securely mount gPV fuse | DC Voltage/Current Rating, Material | Combiner Box / Disconnect |
| DC Switch Disconnector | Manual isolation for maintenance/emergency | DC Load Break Rating, Visible Break | Combiner Box, Inverter Input |
| DC SPD | Protect against voltage surges (lightning, etc.) | DC MCOV, Discharge Current Rating | Combiner Box, Inverter DC Input |
Choosing components specifically tested and certified for DC PV use (like those meeting IEC standards) is non-negotiable. Matching voltage and current ratings precisely to the system design parameters is equally critical for effectiveness. We always emphasize verifying these specs during the design phase.
Why Choose Fuspan for Reliable PV System Safety Components?
Sourcing critical PV safety components from unknown or unreliable suppliers? This introduces risks like project delays, inconsistent quality, and component failures down the line. Fuspan offers dependable, certified DC protection tailored for your solar project needs.
Choose Fuspan for proven reliability stemming from our ISO 9001 manufacturing processes, rigorous 100% factory testing on all DC components, and strict adherence to IEC standards (including gPV fuses). We provide comprehensive technical support, complete documentation, and dedicated project management crucial for demanding EPC projects.
For procurement managers like Mr. Abdu handling large-scale EPC contracts, especially in the new energy sector like solar PV, supplier reliability is paramount. You need more than just components; you need a partner who guarantees quality, provides support, and understands the demands of project timelines and technical specifications.
Quality Assurance and Compliance
Our commitment starts with our ISO 9001 certified quality management system, ensuring consistent procedures from raw material sourcing to final assembly. We design and manufacture our DC protection components, including gPV fuses and DC switch disconnectors, to meet stringent IEC standards (e.g., IEC 60269-6 for PV fuses). Critically, every single DC fuse component undergoes 100% testing before shipment – not just batch sampling. This guarantees functional reliability and consistency, essential for large solar farm installations where component uniformity is key.
Technical Support and Documentation
We understand that seamless integration requires clear information. We provide a full documentation package for our PV components, including detailed datasheets, 2D/3D drawings (essential for panel builders), and type test reports verifying IEC compliance. Our experienced engineering team can provide technical assistance in English, helping resolve design or application queries efficiently. I personally worked with an EPC partner recently to select the optimal fuse coordination for their specific inverter parameters – this kind of support avoids problems later.
Project Reliability
Meeting project deadlines is critical. Our established production capacity (over 50,000 fuse components monthly) and dedicated export project management ensure clear communication, responsive service, and proactive delivery schedule management, mitigating risks of delays for time-sensitive PV projects.
| EPC Concern | Fuspan Solution | Benefit for PV Project |
|---|---|---|
| IEC Certification | Components Designed & Tested to relevant IEC Standards | Ensures project compliance, safety, quality |
| Product Reliability | ISO 9001 System, 100% Factory Testing | Reduces failure rates, ensures consistent performance |
| Technical Specs | Full Documentation (Datasheets, Drawings, Test Reports) | Easy design integration, clear verification |
| Communication | English-Speaking Engineers, Dedicated Project Manager | Efficient problem-solving, clear updates |
| Delivery Schedules | Strong Production Capacity, Proactive Management | Supports project timelines, ensures availability |
| Supplier Stability | Experienced Manufacturer in DC/New Energy Sector | Long-term reliable partner for components |
We aim to be the trusted Chinese factory partner for EPCs globally, providing not just the certified components needed for safe PV systems, but also the reliability and support required for successful project execution.
Conclusion
Optimized safety is vital for PV systems, preventing fires and equipment damage. Using correct DC components like gPV fuses and disconnects is essential. Choosing a reliable supplier ensures project success.
