Electrical system designers often underestimate the importance of fuse rail selection¹. Choosing components based solely on price and basic specifications can lead to hazardous operation, difficult maintenance, and premature system failures.

Fuse rails (also called fuse disconnectors²) are specialized switching devices that combine fuse protection with physical disconnection capabilities, allowing for safe isolation of electrical circuits during maintenance while providing overcurrent protection³ through replaceable fuse elements.

In my extensive field experience, I've found that fuse rails and disconnectors represent one of the most underappreciated interfaces between safety and serviceability in electrical systems. I've witnessed firsthand how properly designed fuse rails dramatically reduce maintenance downtime and enhance technician safety—something specification sheets simply cannot convey.

What is a Fuse Disconnector Switch?

Many electrical professionals confuse basic fuse holders with proper disconnector switches. This misunderstanding creates safety hazards when technicians believe circuits are isolated when they're actually still energized.

A fuse disconnector switch is a mechanical device⁴ that combines fuse protection with positive isolation capabilities⁵. It securely holds fuses while providing a means to physically disconnect the circuit with visible isolation, ensuring safe maintenance without removing the fuse itself.

What strikes me most in customer installations is the significant variation in operation quality; the tactile feedback⁶ from a premium disconnector provides operators with confidence that a circuit is truly isolated, while budget alternatives often leave that critical state ambiguous.

The evolution of fuse disconnector technology reveals much about how our understanding of electrical safety has progressed. Early designs focused primarily on basic functionality—simply holding a fuse in place with rudimentary disconnection means. Modern fuse disconnectors have transformed into sophisticated devices with multiple safety features⁷.

I recently visited a manufacturing facility that had experienced a serious electrical incident. A maintenance technician had been working on what he believed was an isolated circuit, but the economy-grade fuse holder they used didn't provide clear indication of its disconnected state. The incident could have been prevented with a proper fuse disconnector that featured true positive isolation and visual status indication.

Modern fuse disconnectors incorporate several critical features that distinguish them from basic fuse holders:

1. Positive action mechanisms that ensure complete circuit interruption
2. Clear visual indication of the disconnected state
3. Locking capabilities to prevent unauthorized reconnection
4. Arc suppression features for safer operation under load
5. Finger-safe designs that prevent accidental contact with live parts

In demanding applications like solar combiner boxes or industrial control panels, the quality of the disconnection mechanism becomes particularly important. I've observed that installations with premium fuse disconnectors typically experience fewer maintenance issues and longer service life, despite the higher initial cost.

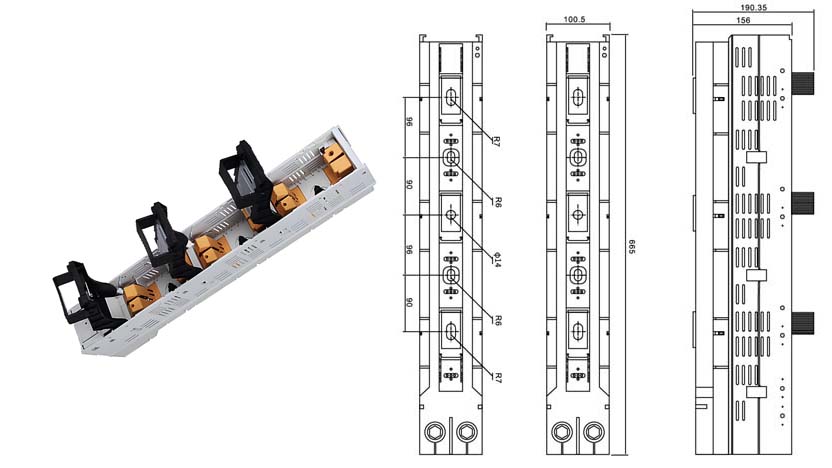

Key Components of a Modern Fuse Disconnector:

What is the Purpose of a Fused Disconnect Switch?

System designers often treat disconnection as an afterthought rather than a critical safety feature. This oversight leads to installations where maintenance becomes hazardous and emergency isolation is compromised.

The purpose of a fused disconnect switch⁹ is three-fold: it provides overcurrent protection through fuses, enables safe isolation during maintenance, and allows for quick emergency disconnection. This combination enhances both system protection and personnel safety.

I've learned through several near-miss incidents that the real value of a quality fuse disconnector isn't in its basic functionality but in how it performs under stress: when opened under load, during emergency situations, or after years of environmental exposure¹⁰.

In one particularly memorable case, I was called to evaluate an industrial installation where a maintenance technician had narrowly avoided serious injury. The facility had installed budget fuse holders that lacked proper disconnection capabilities. During routine maintenance, the technician was working under the assumption that removing the fuse had fully isolated the circuit—but voltage remained present at the load terminals. A proper fused disconnect switch would have physically broken the circuit connection, preventing this dangerous situation.

The primary purposes of a fused disconnect switch become especially important in specific applications:

In photovoltaic systems¹¹, fused disconnects in combiner boxes allow for safe isolation of individual strings during maintenance without shutting down the entire array. The disconnection capability is as important as the overcurrent protection in these applications, particularly when working with the high DC voltages typical in modern solar installations.

In motor control circuits¹², fused disconnects provide both short-circuit protection and a means of isolation during motor service. The visible break provided by proper disconnectors gives maintenance personnel confidence that the circuit is truly de-energized before work begins.

In distribution panels¹³, fused disconnect switches allow for selective isolation¹⁴ of circuits during system expansion or modification. This capability minimizes downtime by allowing work on specific circuits while keeping the remainder of the system operational.

This realization has fundamentally changed how I approach discussions with clients who initially focus on price rather than these crucial operational characteristics.

Critical Applications for Fused Disconnect Switches:

1. Solar PV Systems: String isolation in combiner boxes
2. Motor Control Centers: Individual motor isolation and protection
3. Industrial Machinery: Maintenance isolation points
4. Distribution Panels: Selective circuit isolation
5. Battery Storage Systems: DC circuit protection and isolation
6. Critical Infrastructure: Emergency disconnection capabilities

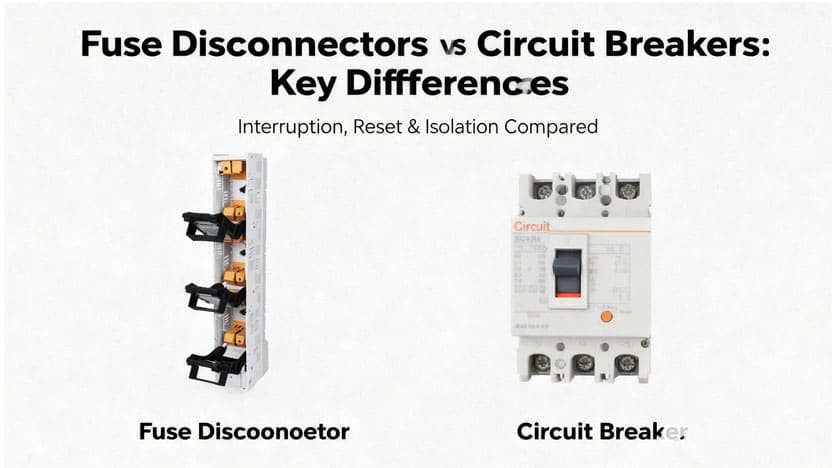

What is the Difference Between a Fuse Disconnector and a Circuit Breaker?

Engineers often debate fuse disconnectors versus circuit breakers based on limited criteria. This narrow focus overlooks important operational differences that impact both safety and system performance over time.

The main differences between fuse disconnectors and circuit breakers are in their interruption method, reset capability, and isolation characteristics. Fuse disconnectors provide silent operation, superior fault current limitation, and clear visible isolation but require fuse replacement after operation, while circuit breakers offer resettability and trip indication.

Through my work with various electrical systems, I've developed a nuanced understanding of when each protection device type is most appropriate. The selection between fuse disconnectors and circuit breakers involves consideration of numerous factors beyond basic protection ratings.

One significant difference that's often overlooked is the current-limiting capability¹⁵ of fuses versus circuit breakers¹⁶. High-quality fuses can limit fault currents within their first quarter-cycle of operation—far faster than most circuit breakers. This rapid response significantly reduces the let-through energy during fault conditions, which can mean the difference between minor damage and catastrophic failure of downstream equipment.

In a recent industrial installation I consulted on, the client initially specified circuit breakers throughout their distribution system for the convenience of resettability. After analyzing their specific application needs, which included protecting sensitive electronic equipment, we recommended selective use of fused disconnectors at critical protection points. The superior current limitation of the fuses provided enhanced protection for their expensive manufacturing equipment.

Another key difference is in the nature of aging and reliability. Circuit breakers, with their complex mechanical and sometimes electronic components, can experience subtle degradation over time that affects their trip characteristics. Properly rated fuses, by contrast, maintain their interruption characteristics throughout their service life. In applications where regular testing and maintenance might be challenging, this difference can be significant.

The visual confirmation of isolation¹⁷ provided by fused disconnectors represents another important distinction. When a fuse disconnector is in the open position, the physical separation of contacts is clearly visible, providing definitive confirmation of circuit isolation. Circuit breakers typically provide only a handle position or indicator that may not directly correspond to the actual contact state, especially in failure scenarios.

Comparative Analysis of Fuse Disconnectors vs. Circuit Breakers:

Both fuse disconnectors and circuit breakers have their place in well-designed electrical systems. The optimal approach often involves strategic use of both technologies, leveraging the strengths of each for specific protection requirements within the system.

In my experience, smaller distribution systems often benefit from the simplicity and cost-effectiveness of fuse disconnectors, while larger systems with frequent operational changes may justify the higher investment in circuit breakers. Many sophisticated installations use a hybrid approach¹⁸—circuit breakers for main distribution and frequently operated circuits, with fused disconnectors protecting critical equipment or specialized loads.

Application-Specific Selection Guidelines:

1. Choose Fuse Disconnectors When:

   • Maximum current limitation is required
   • Clear visible isolation is essential for safety
   • Environmental conditions are harsh (extreme temperatures, corrosive atmospheres)
   • Protection characteristics must remain stable over long periods without maintenance
   • Protection against DC faults is a primary concern

2. Choose Circuit Breakers When:

   • Frequent operation is expected
   • Non-technical personnel may need to restore service
   • Automatic reclosing is required
   • Integrated ground fault protection is needed
   • Remote operation or monitoring is part of the system design

Conclusion

Fuse rails and disconnectors represent a critical interface between system protection and operator safety. By understanding their unique characteristics and selecting quality components, you can build electrical systems that not only protect equipment effectively but also provide safer, more efficient maintenance access throughout the system's operational life.
