Installing solar panels without proper circuit protection creates dangerous electrical hazards. Many DIY installers skip this critical safety component to save money, risking property damage, system failures, or even fires that could have been easily prevented.

Yes, most solar panel installations require circuit breakers¹ or fuses. These devices protect against overcurrent conditions, short circuits, and provide a means of disconnection for maintenance. For systems with multiple panels in parallel² or battery connections³, circuit protection⁴ is essential for safety and code compliance.

Throughout my years working with solar installations, I've witnessed the consequences of inadequate protection firsthand. Let me share what I've learned about when circuit breakers are necessary, what happens without them, and how to choose the right protection for your solar system.

Do I Need a Circuit Breaker for Solar Panels?

Many DIY solar enthusiasts try to save money by skipping circuit breakers. This creates serious risks of equipment damage and electrical fires, especially in systems with multiple panels or batteries that can deliver dangerous fault currents⁵.

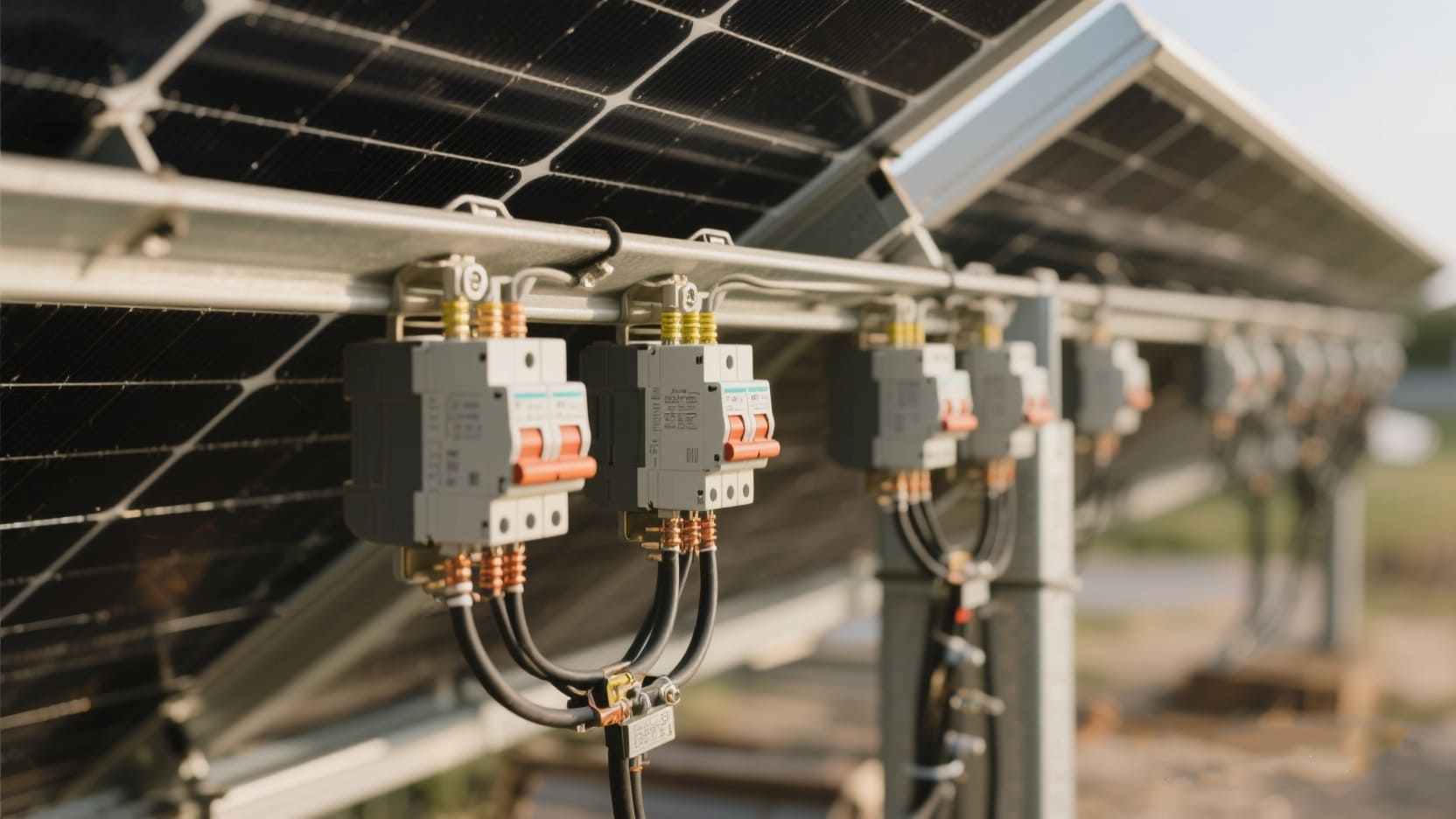

Circuit breakers are necessary in solar installations with multiple panels in parallel, battery connections, or grid-tied systems⁶. They protect against overcurrent, provide a disconnect point⁷ for maintenance, and are required by electrical codes for most permanent installations.

The necessity of circuit breakers varies depending on your specific solar configuration. I've created this table based on my experience with different system types:

Circuit Breaker Requirements by Solar System Type

When working with small off-grid systems, I sometimes see single-panel setups connected directly to a charge controller⁸. While technically functional without a breaker, even these simple systems benefit from having a disconnect point for maintenance and emergency shutdown.

For multi-panel systems, the need becomes more critical. When panels are connected in parallel, the potential current increases significantly. Without proper circuit protection, a fault in one panel or wire could draw excessive current from all other panels, creating a serious fire hazard. I've investigated system failures where this exact scenario melted wires and damaged equipment that would have been protected by a simple circuit breaker.

For battery-connected systems, circuit breakers are absolutely essential. Batteries can deliver extremely high fault currents – sometimes hundreds or even thousands of amps – that can instantly damage equipment and create severe safety hazards⁹ if not properly protected.

Can I Just Connect a Solar Panel Directly to the Battery?

Connecting solar panels directly to batteries seems simple but creates dangerous risks. Without proper regulation, you'll likely damage expensive batteries through overcharging, waste solar production, and create potential fire hazards.

Never connect solar panels directly to batteries without a charge controller. Direct connections cause unregulated charging that damages batteries through overcharging, shortens battery life, wastes energy, and creates safety hazards. Always use a charge controller with appropriate circuit protection.

From my experience supporting solar installations across various applications, I've documented the risks of direct solar-to-battery connections:

Risks of Direct Solar-to-Battery Connection

I once consulted on a system where the owner had connected a 36-cell panel (about 18V output) directly to a 12V battery. While this might seem workable, the panel's voltage varies significantly with temperature and sunlight conditions. On cold, sunny days, the voltage exceeded 22V, severely overcharging and eventually destroying an expensive lithium battery.

Even with perfectly matched voltage, direct connections lack the intelligent charging profiles that batteries need for optimal performance and longevity. Modern batteries—especially lithium types—require specific charging parameters that only a controller can provide.

Beyond battery damage, direct connections create safety issues. Without overcurrent protection, a short circuit in the wiring could cause fires. Without a disconnect mechanism, performing maintenance becomes dangerous. And without blocking functionality, panels can actually drain batteries at night when voltage reverses.

For any practical solar application, I always recommend this basic configuration: solar panel → circuit protection → charge controller → battery disconnect → battery. This arrangement provides the necessary safety functions while ensuring optimal charging performance.

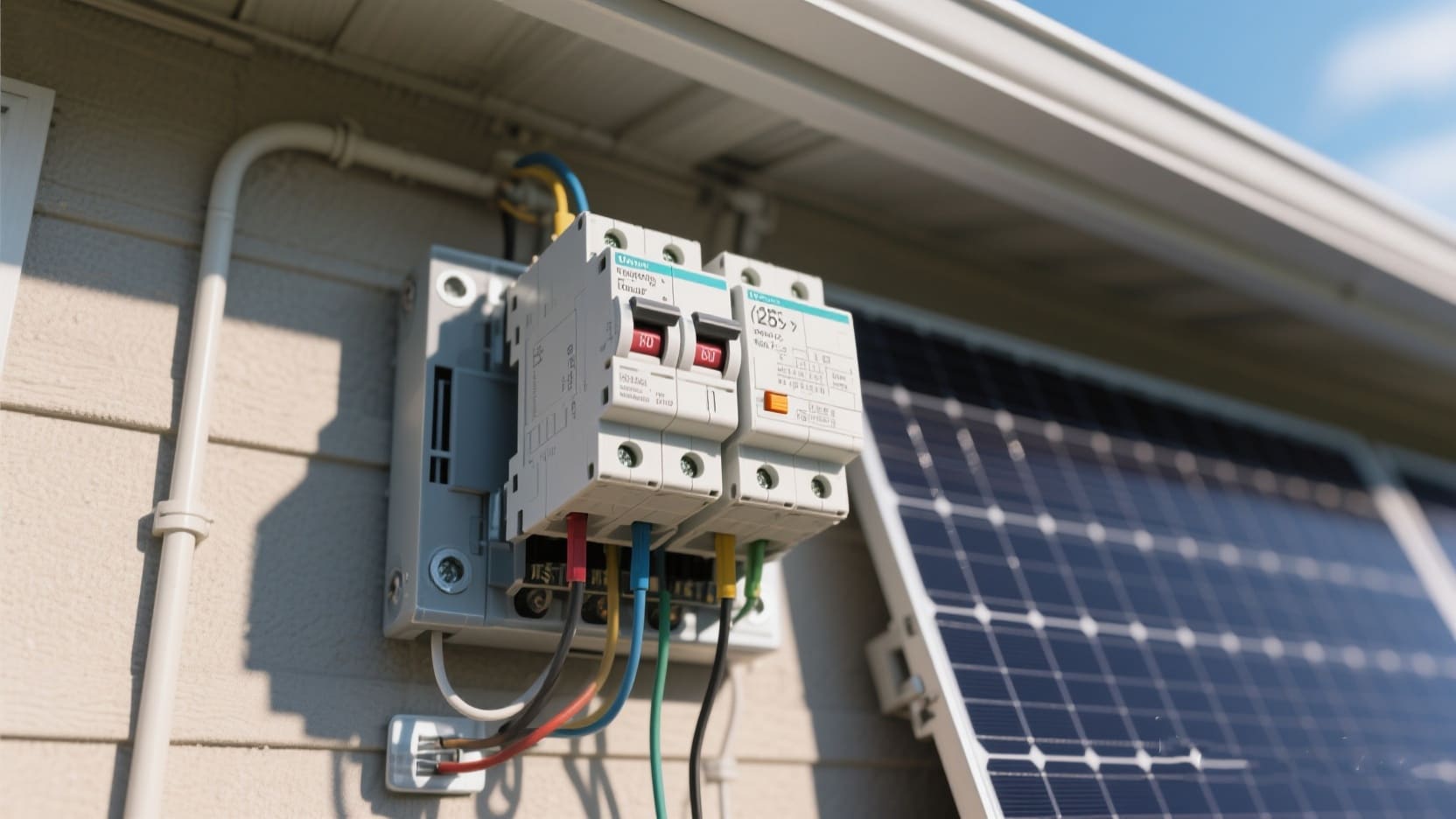

What Is the Solar Breaker Rule?

Many solar installers misunderstand or incorrectly apply the solar breaker rule¹⁰. This creates installations that either trip constantly during normal operation or fail to provide adequate protection during fault conditions.

The solar breaker rule requires overcurrent devices for PV systems to be sized at 125% of the calculated maximum circuit current, which itself is already 125% of the panel's short circuit current (Isc). Effectively, breakers must be sized at least 156% of the panel's rated Isc.

The solar breaker rule stems from specific electrical code requirements that account for the unique characteristics of PV systems. Here's how it works in practice:

Solar Breaker Sizing Process

This double application of the 125% factor often confuses installers. The first factor accounts for environmental conditions¹¹ that could increase panel output beyond rated specifications. Solar panels are tested at standard conditions, but real-world sunlight can occasionally exceed these values, especially with reflective surroundings or at certain elevations.

The second 125% factor accounts for the continuous nature of solar production. Electrical codes typically require devices carrying continuous loads (those operating for 3+ hours) to be derated to 80% of their rating, which is mathematically equivalent to sizing the breaker at 125% of the load.

In my work designing large commercial systems, I've found another important consideration: temperature derating. Circuit breakers have specific performance curves that shift with ambient temperature. In hot rooftop combiner boxes that might reach 60°C (140°F) internally, breakers may need additional derating factors applied beyond the standard calculation.

For multi-string systems, the calculation starts by multiplying the panel Isc by the number of parallel strings, then applying the factors above. Remember that the breaker must also have an appropriate voltage rating for your system's maximum voltage, including temperature adjustments for cold conditions.

How Many Amps Should a 300 Watt Solar Panel Put Out?

Many new solar owners panic when seeing their 300W panel producing only 8 amps instead of the expected 25 amps. This misunderstanding of how solar panels operate leads to unnecessary warranty claims and system reconfigurations.

A typical 300 watt solar panel produces between 8-9 amps at its maximum power point in full sunlight. The exact amperage depends on the panel's voltage (typically 30-40V), as amps × volts = watts. Lower voltage systems will see higher amperage for the same wattage.

Understanding a solar panel's output requires looking at several electrical specifications and how they interact under different conditions:

Typical 300W Solar Panel Output Specifications

In my experience supporting solar installers, the confusion about amperage often comes from not understanding the relationship between voltage and current. A 300W panel operating at 36V will produce about 8.3A (300W ÷ 36V = 8.33A). The same panel connected to a system operating at 12V would need to produce 25A to deliver 300W, which is impossible without a power converter.

Weather conditions dramatically affect panel output. While manufacturers rate panels under Standard Test Conditions (STC) of 1000W/m² irradiance at 25°C, real-world conditions vary widely. On a partly cloudy day, output might drop to 50% or less of the rated value. Temperature also significantly impacts performance, with panels losing approximately 0.4% of power output for every degree Celsius above 25°C.

For practical purposes when sizing circuit breakers, I always use the panel's specified Isc value, which represents the maximum current the panel can produce under ideal conditions. This value is typically 10-15% higher than the normal operating current (Imp) to provide a safety margin.

Remember that panels wired in series maintain the same current while adding voltages, while panels wired in parallel maintain similar voltage while adding currents. This becomes critically important when calculating the required ampacity of circuit protection devices.

Conclusion

Most solar panel installations require circuit breakers to ensure safety, protect equipment, and meet electrical codes. For multi-panel systems or any installation with batteries, proper circuit protection isn't optional—it's essential for preventing damage and ensuring your system operates safely for decades.
