Struggling with bulky, complex power distribution in your projects? Traditional cabling often causes installation headaches and space issues. Busbar systems offer a modern, efficient alternative.
Busbar systems are often preferred over cables because they save space, install faster, offer greater flexibility for changes, and provide enhanced reliability, frequently leading to a lower total cost of ownership.
You might wonder how these advantages translate into real-world benefits for your projects. We see engineers and procurement managers increasingly choose busbar for demanding applications. Let's break down the specific reasons why this shift is happening and explore the practical advantages busbar brings compared to conventional cable setups. Understanding these points is key to making informed decisions for efficient and future-proof power distribution.

Why do we use a busbar instead of cables?

Finding installation slow and costly with traditional cables? Pulling heavy cables through conduits takes significant time and manpower, delaying project completion and increasing labor expenses significantly.
We use busbar systems primarily because they install much faster than traditional cable runs. Prefabricated sections simply bolt together, drastically cutting down installation time and associated labor costs.
Let's dive deeper into the installation aspect. When I talk to project managers like Mr Abdu, managing EPC projects, tight schedules are always a major concern. Traditional cabling involves several time-consuming steps: pulling multiple heavy cables, carefully bending them around obstructions without exceeding radius limits, stripping insulation, and terminating each conductor individually. This process is labor-intensive and prone to delays.

Faster Project Completion

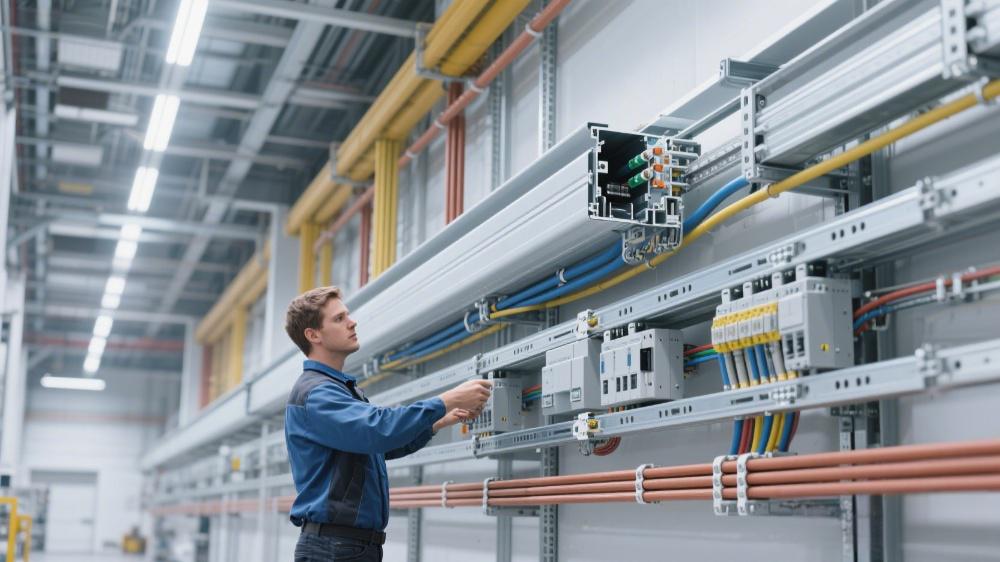

Busbar systems streamline this dramatically. Components arrive on-site as standardized, factory-finished sections. Installation involves lifting these sections into place and joining them with simple, reliable bolted connections. Tap-off units for feeding loads can be quickly plugged or bolted in predetermined locations. This modular approach¹ significantly reduces the man-hours required on site. We've seen projects shave weeks off their electrical installation schedules by using busbar.

Reduced Labor Costs

The reduction in installation time directly translates to lower labor costs. Fewer electricians are needed for a shorter duration. This is a critical factor, especially on large-scale industrial or new energy projects where labor is a significant budget component. For procurement managers focused on budget adherence, this is a compelling advantage. At Fuspan, we support this by ensuring our systems are designed for straightforward assembly and providing clear documentation, addressing concerns about unfamiliarity with the system.

What is the advantage of busbar?

Worried about valuable space being consumed by bulky electrical infrastructure? Large cable bundles require extensive trays and conduits, eating up floor, ceiling, or riser space.
A key advantage of busbar is its compact design. It offers a much higher power density, meaning it can carry more current in significantly less physical space compared to cables.

Space efficiency is more than just a convenience; it's often a critical design driver. In facilities like data centers, manufacturing plants, or high-rise buildings, every square meter has value. Using that space for bulky electrical distribution systems instead of revenue-generating equipment or essential operational functions is inefficient.

Higher Power Density

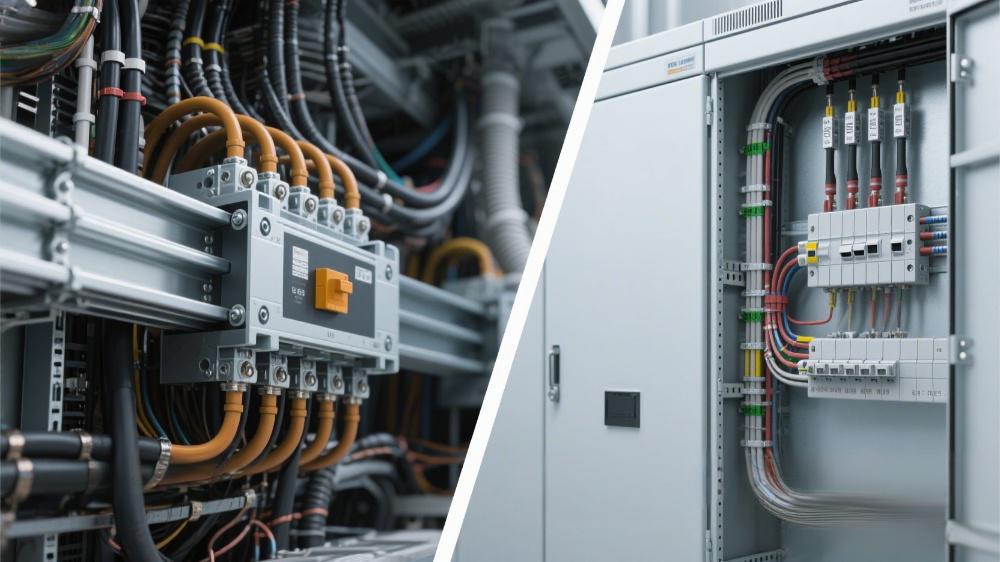

Busbar trunking systems achieve their compactness through efficient conductor design and arrangement within a rigid enclosure. Compared to the multiple, individually insulated round conductors in cables, busbars use closely spaced flat or shaped conductors. This allows them to handle large currents within a much smaller cross-sectional area. For example, distributing 1600A might require multiple large, difficult-to-handle parallel cable runs per phase, occupying a large tray. The equivalent busbar system would be a single, relatively slim trunking section.

Facility Design Impact

This space saving has several positive consequences:

• Reduced Riser/Shaft Sizes: Less vertical space is needed to run power through multi-story buildings.
• Lowered Ceiling Voids: Less space is required above suspended ceilings.
• More Equipment Space: Valuable floor area in electrical rooms or data halls is freed up.
• Improved Maintenance Access: Less congestion around electrical routes makes access easier and safer.
  At Fuspan, our busbar distribution blocks and panel assemblies are also designed with space efficiency² in mind, complementing the trunking systems. This focus on compact, high-performance design³ directly addresses the need to maximize usable space in modern facilities.

  What are the advantages of bus duct over cable?

  Concerned about making future changes or additions to your power distribution? Modifying traditional cable systems often means costly downtime and complex re-wiring or pulling new circuits.
  Bus duct (busbar trunking) systems offer superior flexibility and scalability. Adding or relocating loads is simple using pre-engineered tap-off points, often without de-energizing the main run.

  The operational life of a building or industrial facility often involves changes. Equipment gets upgraded, production lines are reconfigured, or tenant needs evolve. A power distribution system must be able to adapt easily and cost-effectively. This is where bus duct truly excels compared to fixed cable installations.

  Effortless Modifications

  Busbar trunking features regularly spaced plug-in or bolt-on points along its length. Adding a new machine or power feed is as simple as:

  1. Selecting the appropriate tap-off unit⁴ (a fused switch or circuit breaker in a dedicated housing).
  2. Connecting the tap-off unit to the busbar at the desired location – often possible while the main busbar remains energized, depending on the system design and safety procedures.
  3. Running a short final connection from the tap-off unit to the load.
     This process is significantly faster and less disruptive than the equivalent work with cables, which might involve pulling entirely new circuits from the distribution board, installing new conduits, and extensive termination work.

     Scalability and Future-Proofing

     This inherent flexibility makes busbar systems⁵ highly scalable. If load requirements increase, additional circuits can be added easily. If a facility layout changes, tap-off points can be relocated. This adaptability future-proofs the electrical infrastructure. For EPC contractors like Mr Abdu's company, providing a system that accommodates future client needs easily is a value-added benefit. Fuspan⁶ supports this by offering a wide range of tap-off units and ensuring long-term availability of compatible components, addressing concerns about stable, long-term supply partnerships.

     What are the advantages of busbar system in comparison with a cable system?

     Seeking a power distribution solution that maximizes reliability and safety while considering the total cost? While initial cable costs might seem lower, installation, maintenance, and potential failures add up.
     Busbar systems offer enhanced reliability due to their rigid, enclosed design and standardized connections. They often have lower voltage drop and contribute to a lower Total Cost of Ownership (TCO).

     When evaluating power distribution methods, looking beyond the initial material price is crucial. The overall performance, safety, and lifetime costs paint a more complete picture, often favoring busbar systems, especially for critical applications or large installations.

     Reliability and Safety

• Robust Construction⁷: Busbars are housed in rigid metal enclosures, providing better physical protection against damage compared to cables, which can be vulnerable.
• Fewer Connection Points: A long cable run involves multiple termination points (lugs, connectors), each a potential point of failure if not installed perfectly. Busbar systems use factory-designed, reliable bolted joints between sections and secure tap-off connections.
• Consistency: Factory manufacturing ensures consistent quality. Fuspan’s adherence to ISO 9001 and 100% pre-shipment testing guarantees this reliability, a key concern for projects requiring high consistency.
• Reduced Errors: Standardized connections minimize the risk of wiring errors during installation compared to terminating many individual cable conductors.
• Fire Safety⁸: Many busbar systems offer integrated fire barrier solutions where they pass through walls or floors.


  Performance and Efficiency

  Busbar systems generally exhibit lower voltage drop over long distances compared to cables of equivalent current-carrying capacity. This is due to their optimized conductor shapes and lower impedance characteristics, leading to better energy efficiency.

  Total Cost of Ownership (TCO)⁹

  While the upfront material cost of busbar might sometimes be higher than cable, a TCO analysis often reveals busbar as more economical:

Fuspan supports this with comprehensive technical documentation, including IEC compliance certificates, test reports, and drawings, addressing Mr Abdu's need for complete project documentation and ensuring the specified quality and performance are met.

Conclusion

In summary, busbar systems offer compelling advantages over traditional cables: faster installation, significant space savings, superior flexibility for future changes, and enhanced reliability, often resulting in a lower total cost.
