Cluttered panels causing headaches? Busbars offer a clean, efficient way to manage power distribution, simplifying complex wiring jobs and boosting reliability.
A busbar's main function is to conduct and distribute large electrical currents from one source to multiple circuits within an enclosure, acting as a central, high-capacity connection point.
My insights show that understanding the practical function is key. As I've seen in the field, the textbook answer of "conducting electricity" barely scratches the surface. It's really about creating a more robust, maintainable, and safer electrical system. Let's explore why they are becoming essential.

Why do you need a bus bar?

Struggling with complex high-current wiring? Busbars simplify power distribution, reduce clutter, and enhance safety in demanding electrical panels, making your job easier.
You need a busbar for efficient high-current distribution, connecting multiple circuits cleanly, saving space, reducing installation time, and improving overall system reliability and organization compared to using multiple cables.
!
In my experience working with clients like Mr. Abdu on large EPC projects, the need for busbars becomes very clear. When you're dealing with substantial power requirements for new energy stations or industrial controls, relying solely on cables creates unnecessary challenges. Busbars directly address these needs. Think about the common pain points: short lead times and the need for highly consistent products. A well-designed busbar system drastically cuts down assembly time compared to routing and terminating numerous heavy cables. It also ensures a standardized layout, which is crucial for consistency across multiple panels in a large project. Furthermore, the organized structure simplifies maintenance and troubleshooting down the line – a vital factor for long-term operational reliability.

Deeper Dive into Necessity:

The reasons to use a busbar often tie back to fundamental system requirements:

1. Handling High Current¹: When currents get large, cables become bulky and difficult to manage. Busbars provide a solid, high-capacity pathway.

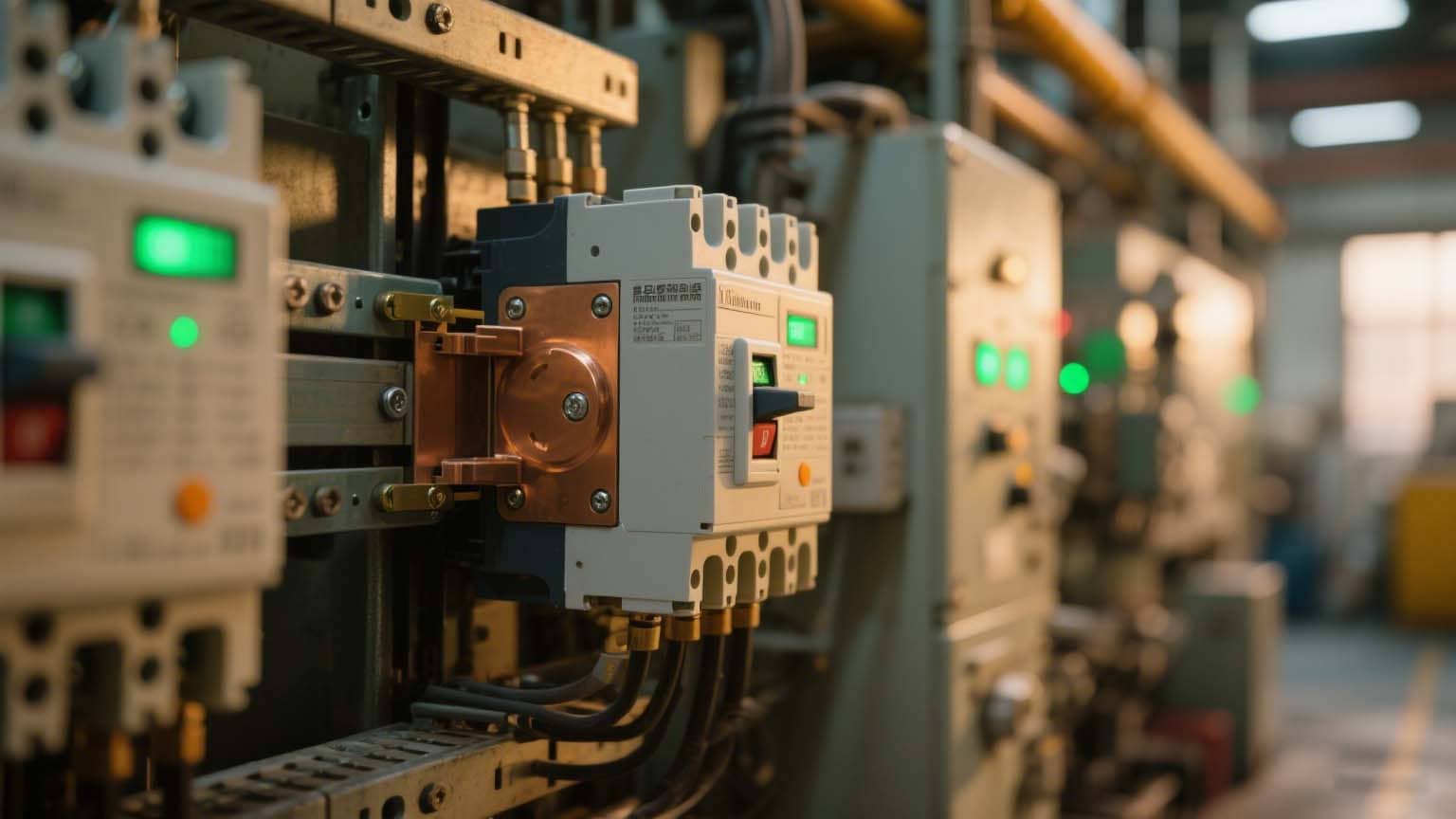

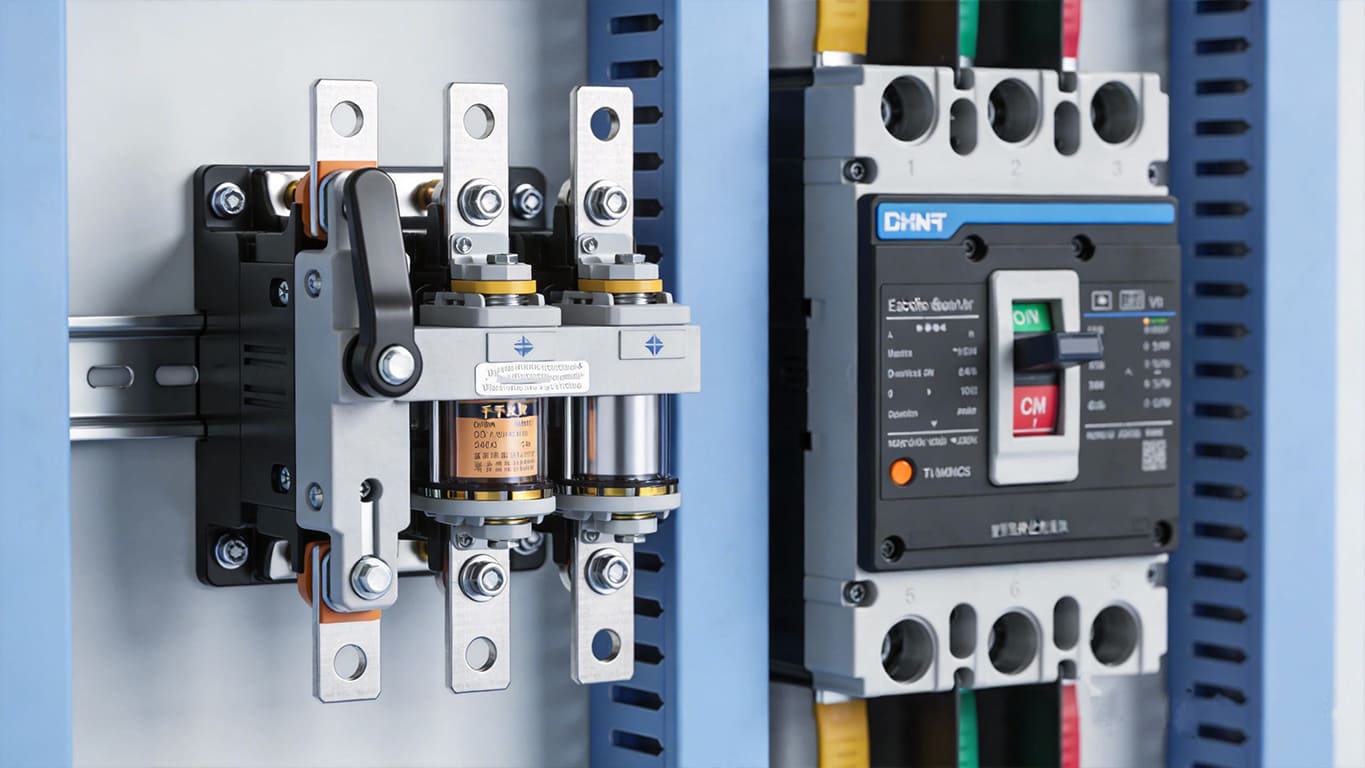

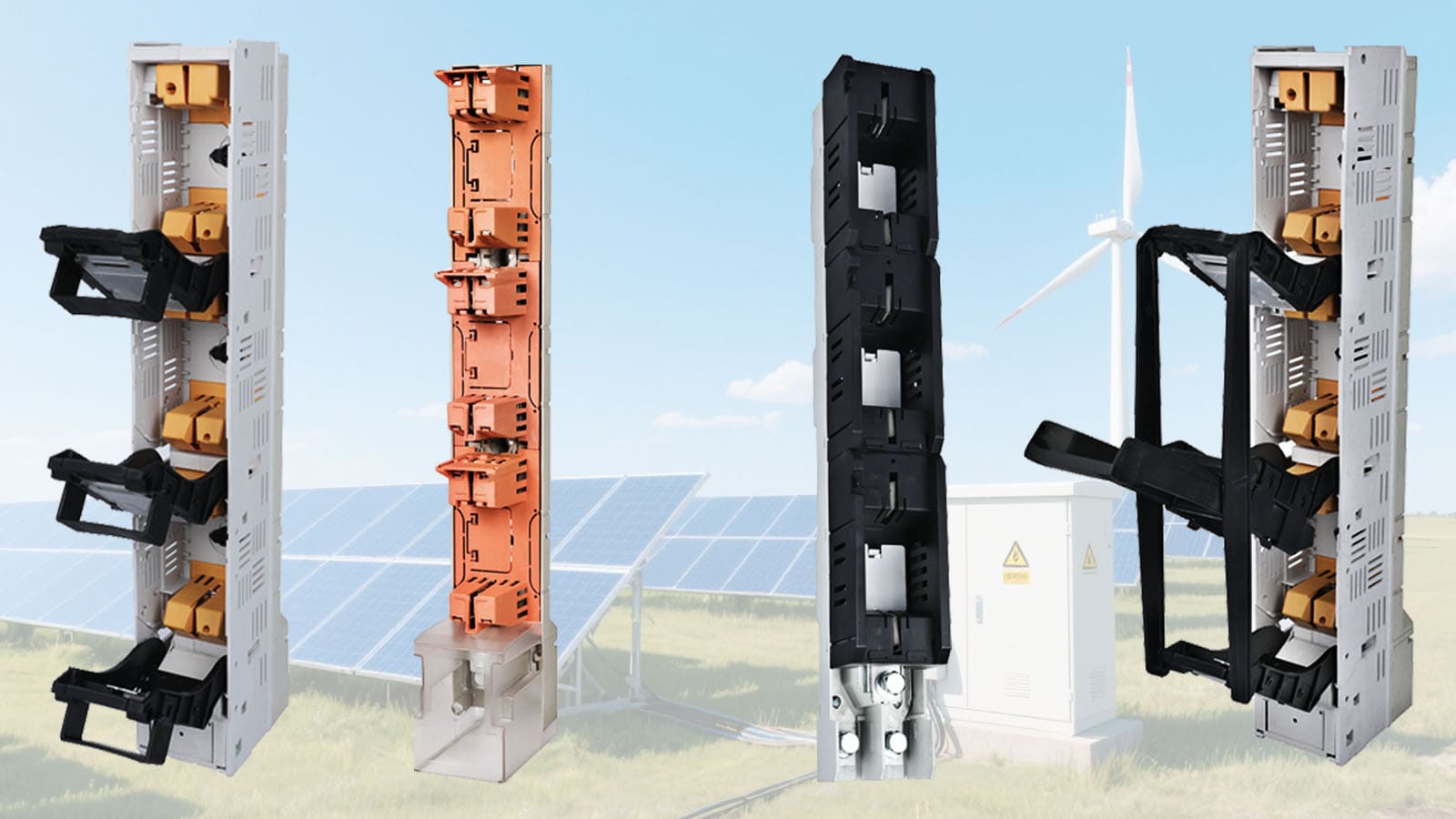

2. Efficient Distribution²: They act as a central manifold, making it easy to connect multiple loads or protective devices (like our fuse switch disconnectors or MCB/MCCB pan assemblies) without complex junctions.
3. Space Optimization: In today's increasingly compact panel designs, busbars allow for denser component layouts compared to the space needed for cable bends and terminations. This is critical in space-constrained applications like energy storage containers.
4. Reducing Labor Costs: Faster assembly translates directly to lower labor costs and shorter project timelines – a major concern for procurement managers needing quick turnarounds.
5. Improving Reliability³: Fewer connection points mean fewer potential failure points (like loose lugs). A solid busbar connection is generally more reliable than multiple cable terminations.

Ultimately, needing a busbar is about choosing a more engineered, reliable, and efficient approach to power distribution, moving beyond basic wiring to create a truly professional system.

What happens if a busbar fails?

Worried about system downtime? A busbar failure isn't just an inconvenience; it can halt operations, cause significant damage, and pose safety risks.
A busbar failure (overheating, short circuit, mechanical break) typically causes immediate power loss downstream, system shutdowns, costly downtime, potential equipment damage, and serious safety hazards like arc flash or fire.

As my insight highlights, we’ve seen cases where poor busbar design or installation led to complete system failures. The impact is severe. Imagine a critical production line stopping or a new energy station going offline unexpectedly. The financial losses from downtime often dwarf any initial savings from using substandard components or installation methods. This potential for catastrophic failure is why focusing on quality and proper specification is so important for procurement managers like Mr. Abdu, who need to guarantee system reliability and long-term supply. A failure reflects poorly on the components and the entire project's execution.

Deeper Dive into Failure Consequences:

Busbar failures, while not extremely common in well-designed systems, can stem from several root causes:

1. Overheating⁴: Often due to improperly torqued connections, dirty contact surfaces, or undersized busbars. High resistance at these points generates heat, which can lead to melting insulation, connection failure, and even fire.
2. Short Circuits⁵: Caused by insulation breakdown, foreign metallic objects falling onto the busbars, or incorrect assembly. The resulting high fault currents can cause explosive arc flashes, severe equipment damage, and immediate power interruption.
3. Mechanical Issues: Vibration can loosen connections over time. Physical impact or inadequate support can cause fractures or deformation, leading to open circuits or intermittent contact.
4. Corrosion: In harsh environments (humidity, chemicals), corrosion can degrade connection integrity, increasing resistance and leading to overheating.
   The consequences are far-reaching:
   • Operational Shutdown: Immediate loss of power to connected circuits halts processes.
   • Equipment Damage: Fault currents or heat can destroy the busbar, insulation, adjacent components (fuses, breakers), and even sensitive loads.
   • Safety Risks: Arc flash poses a lethal threat to personnel. Fires can spread quickly within panels.
   • Financial Loss: Downtime equals lost revenue. Repair/replacement costs add up significantly.
   • Project Delays & Reputation: Failures during commissioning or early operation cause major project setbacks and damage supplier reputation.

This underscores why at Fuspan, we adhere strictly to ISO 9001 quality management and perform 100% testing. Features like touch safety, consistent performance ratings, and thermal stability, which we emphasize, are designed precisely to prevent these failures and ensure the long-term integrity required for demanding projects.

Why use busbar instead of cable?

Choosing between busbars and cables for power distribution? While cables work, busbars offer compelling advantages for efficiency, space, and installation speed in many applications.
Use busbars instead of cables for better current handling in less space, improved heat dissipation, faster installation, fewer connection points (increasing reliability), and a much cleaner, more organized panel layout, especially for high currents.

My insight captures the essence of this: "We’re not just selling copper strips—we’re delivering a smarter, more structured way to wire." I've seen countless panels wired traditionally with masses of heavy cables – they are often difficult to assemble, troubleshoot, and modify. Switching to a busbar system, like our integrated pan assemblies or modular distribution blocks, transforms the panel build. It becomes faster, more repeatable, and inherently more reliable. For Mr. Abdu, needing consistent, reliable components for large projects with potentially tight deadlines, the benefits of busbars over complex cabling are substantial, impacting both the build phase and long-term operation.

Deeper Dive into Busbar vs. Cable:

Let's compare the two approaches directly:

1. Ampacity & Heat⁷: Busbars, especially flat bars with good air exposure, generally dissipate heat more effectively than bundled cables. This allows them to carry more current for a given cross-sectional area without overheating, reducing the need for bulky conductors.
2. Space Efficiency: Busbars have a defined, rigid shape and often take up significantly less volume inside a panel compared to the space required for routing multiple large cables, including their minimum bending radii.
3. Installation Speed & Cost⁸: Mounting a busbar system and connecting devices to it is typically much quicker than measuring, cutting, stripping, crimping lugs onto, and terminating numerous individual cables. This reduces labor hours and project schedules.
4. Reliability⁹: A busbar system drastically cuts down the number of individual bolted or clamped connections compared to using cables with distribution blocks. Fewer connections mean fewer potential points of failure due to loosening or improper termination.
5. Organization & Maintenance: Busbar systems create a clean, logical layout where power flow is easy to visualize. This simplifies inspection, testing, and troubleshooting compared to tracing wires through dense cable bundles.
6. Modularity: Many busbar systems are inherently modular, making it easier to add or replace circuits later compared to disturbing complex cable looms.

While cables are indispensable for connecting between equipment, inside panels distributing significant power, busbars represent a more advanced, efficient, and reliable engineering solution – truly a smarter way to wire.

What is a 12V busbar used for?

Working with low-voltage systems like 12V? Even here, busbars bring valuable organization and reliable power distribution, often overlooked in smaller setups.
A 12V busbar consolidates multiple 12-volt power or ground connections neatly. It provides a secure, central point for distributing power or collecting ground returns in automotive, marine, solar, and RV applications.

It might seem like overkill to use a busbar for just 12 volts, but as my insight suggests, even in low-voltage systems, they act like a crucial "grounding anchor" or power hub. I've seen many DIY 12V setups in vehicles or small solar systems become a rat's nest of wires tapped into each other. Using a simple 12V busbar brings industrial-grade clarity and organization. It ensures each circuit has a solid, low-resistance connection point back to the source or ground, which is important for preventing voltage drop and ensuring devices operate correctly. It makes troubleshooting incredibly easier too – you have one central place to check connections.

Deeper Dive into 12V Applications:

While Fuspan focuses on higher power AC/DC systems, the principles behind using busbars apply equally well at 12V (or 24V/48V). They serve key functions:

1. Power Distribution¹⁰: A positive busbar takes the main 12V feed from the battery or power supply and provides multiple terminals (usually screws or studs) to connect individual circuits (lights, pumps, electronics).
2. Ground Consolidation¹¹: A negative or ground busbar provides a common collection point for all the ground wires from the various circuits, ensuring a reliable path back to the battery's negative terminal. This is often crucial for preventing ground loops and electrical noise.
3. Wiring Simplification: Instead of running numerous wires back to the battery terminals or trying to splice multiple wires together, everything comes neatly to the busbar.
4. Reducing Voltage Drop¹²: By providing a solid, low-resistance path, busbars help minimize voltage drop, especially for higher current 12V loads compared to daisy-chaining connections.
5. Ease of Troubleshooting: If a circuit isn't working, the busbar provides a clear, accessible point to check for voltage or continuity.

Even at 12V, using a busbar brings a level of professionalism and reliability often missing in simpler setups. It establishes that "backbone" structure mentioned in my insights, ensuring the system is built on a solid foundation, regardless of the voltage level. It makes the whole system more robust and easier to manage.

Conclusion

Busbars are essential for efficient, safe power distribution. They simplify wiring, save space, enhance reliability, and are superior to cables in many high-current and multi-circuit applications across various voltages.
