Are you facing challenges with electrical system design for three-phase power? Understanding MCCB panel assemblies can be confusing. Triple-pole configurations add another layer of complexity that impacts system safety and performance.

An electric triple-pole MCCB panel assembly is a specialized electrical component that houses three-pole Molded Case Circuit Breakers, designed to protect and control three-phase power circuits by simultaneously interrupting all three phases during fault conditions.

When I visit industrial facilities, I often find that many engineers and maintenance professionals don't fully grasp the significance of properly configured triple-pole MCCB assemblies. This isn't just about meeting code requirements – it's about optimizing system protection and operational reliability in ways that can significantly impact production.

What is the purpose of a triple pole breaker?

Are you wondering why you need a special breaker for three-phase systems? The purpose goes beyond simple overcurrent protection. Triple pole breakers serve a critical function in maintaining system balance and safety.

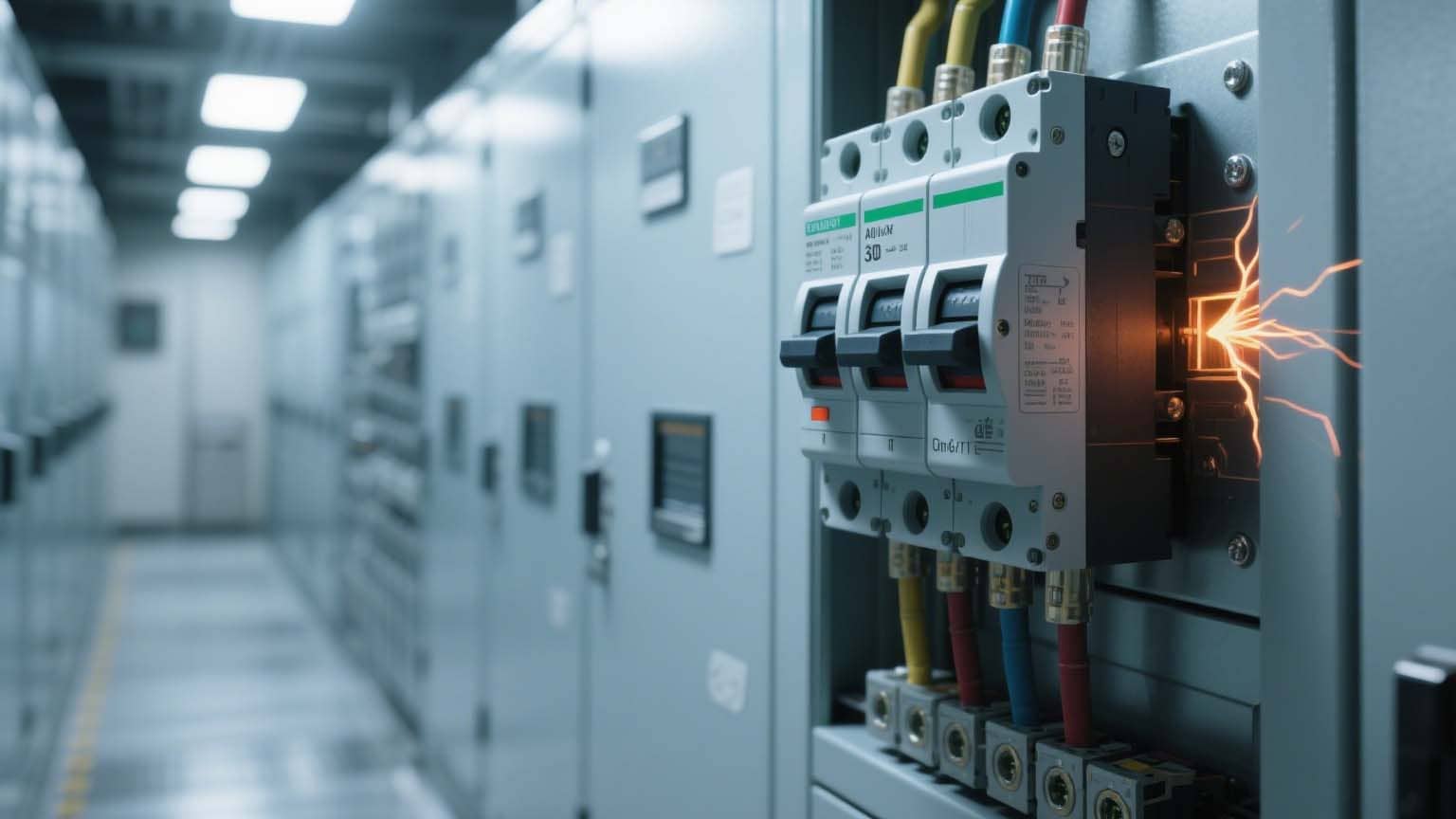

A triple pole breaker protects three-phase electrical systems by simultaneously disconnecting all three phases when a fault occurs on any phase, preventing dangerous imbalances, potential equipment damage, and ensuring comprehensive circuit isolation during maintenance.

I remember visiting a manufacturing facility that had experienced recurring equipment failures. They had been using individual single-pole breakers for their three-phase equipment. During my inspection, I discovered that when one phase experienced a fault and tripped, the other phases remained energized, creating an imbalanced condition that was damaging their expensive motors.

This illustrates one of the most important functions of triple pole breakers: simultaneous disconnection. In three-phase systems, power is distributed across three separate conductors with voltage phases offset by 120 degrees. These systems power most industrial equipment, from motors to HVAC systems to production machinery.

Key Functions of Triple Pole Breakers

The triple pole breaker serves several critical functions that single-pole alternatives cannot match:

1. Simultaneous Phase Disconnection¹: When a fault occurs on any phase, all three phases are disconnected immediately. This prevents the dangerous condition where equipment continues to run on partial power, which can cause overheating and damage.

2. Balanced Load Protection²: Three-phase systems rely on balanced loads across all phases. A triple pole breaker ensures that protection is applied equally to all phases.

3. Common Trip Mechanism³: The internal mechanism links all three poles mechanically, ensuring they trip together regardless of which phase experiences the fault.

4. Maintenance Safety: During maintenance, all three phases are guaranteed to be disconnected, providing safer working conditions.

5. Transient Voltage Protection⁴: By switching all phases simultaneously, dangerous transient voltages that can damage sensitive electronic equipment are minimized.

Feature	Single-Pole Solution	Triple-Pole Solution	Advantage
Fault Response	Individual phase protection only	All phases disconnect together	Prevents equipment damage from phase imbalance
Maintenance Safety	Each phase must be manually disconnected	One action disconnects all phases	Improved safety, reduced human error
Transient Protection	Sequential disconnection creates voltage spikes	Simultaneous disconnection minimizes transients	Protected sensitive electronics
Space Requirement	Three separate breakers plus ties	One integrated unit	More compact panel design
Coordination	Difficult to ensure synchronized action	Built-in synchronization	More reliable protection scheme

I've measured the difference in transient voltage spikes between properly installed triple-pole breakers and linked single-pole alternatives. The reduction can be as high as 30-40%, which is significant for facilities with sensitive electronic equipment. This is why I always recommend proper triple-pole configurations for industrial clients, especially those with automation systems or precision manufacturing equipment.

What is a MCCB panel?

Are you trying to understand where MCCBs fit into your power distribution system? The MCCB panel plays a crucial role in organizing and housing these important protective devices. Let's explore what makes these panels special.

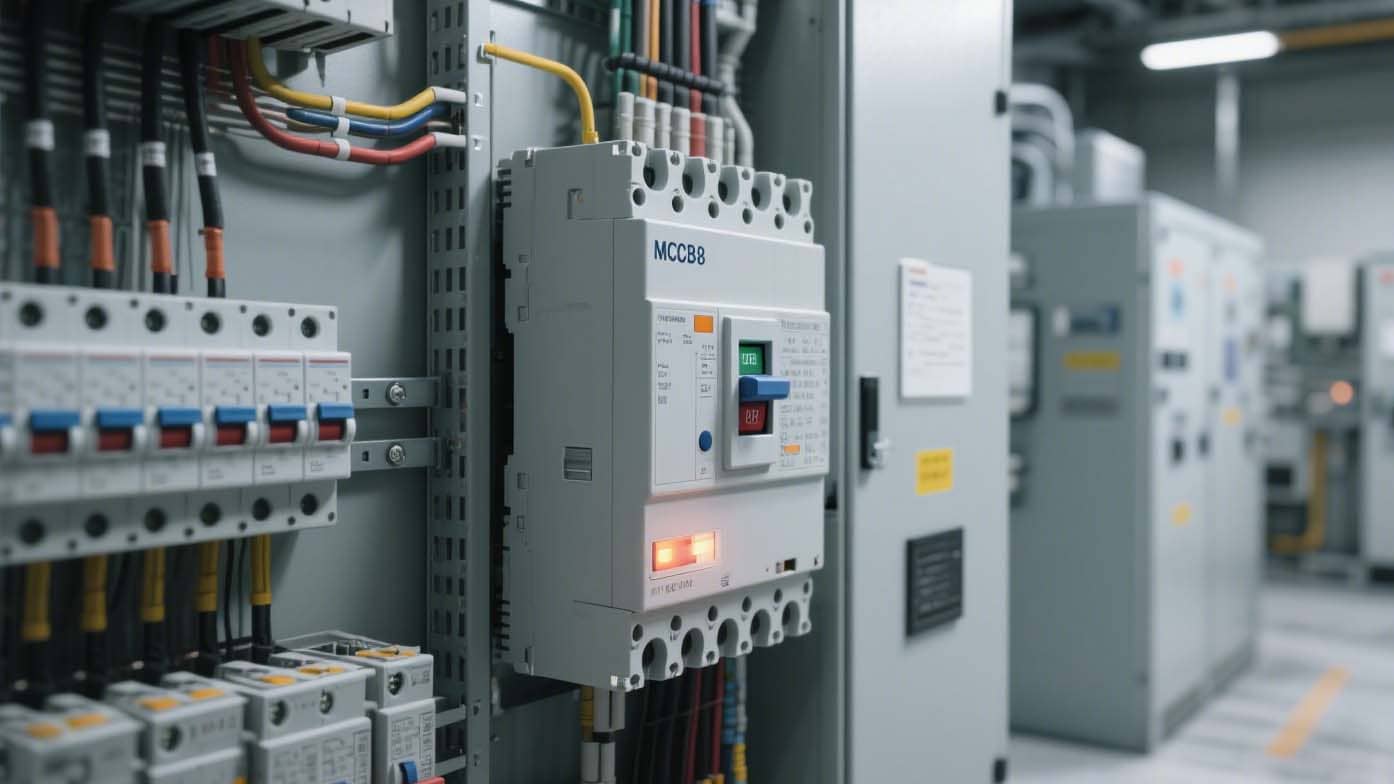

An MCCB panel is a structured electrical enclosure that houses and organizes multiple Molded Case Circuit Breakers, providing a centralized location for power distribution, circuit protection, and system control with proper insulation, busbar connections, and mounting arrangements.

During a recent consultation at a new industrial facility, I walked the client through their MCCB panel design. They were surprised by the complexity and engineering considerations that go into these panels. Many people think of them as simple metal boxes, but they're actually sophisticated electrical assemblies.

Components and Structure of an MCCB Panel

An MCCB panel⁵ is much more than just a collection of circuit breakers. It's an integrated system with several key components:

1. Enclosure: Typically made of steel, the enclosure provides physical protection, prevents unauthorized access, and contains potential arc flashes. These may be rated for indoor or outdoor use, with various environmental protections (IP/NEMA ratings).

2. Busbar System⁶: This is the backbone of the panel - heavy copper or aluminum bars that distribute incoming power to multiple MCCBs. The busbar design is critical for:

   • Heat dissipation
   • Current capacity
   • Short-circuit withstand capability
   • Connection integrity

3. MCCB Mounting Structures: These are the physical supports and connections for individual breakers, often called "pan assemblies." They include:

   • Mounting plates or DIN rails
   • Terminal connections
   • Phase barriers for safety
   • Connection points to the busbar system

4. Auxiliary Components⁷:

   • Terminal blocks for control wiring
   • Metering equipment
   • Surge protection devices
   • Ground bars and connections
   • Control relays and contactors

5. Labeling and Documentation⁸:

   • Circuit identification
   • Warning labels
   • Single-line diagrams
   • Panel schedules

Types of MCCB Panels

MCCB panels come in different configurations based on application requirements:

Panel Type	Typical Application	Special Features
Main Distribution	Service entrance or primary power distribution	Higher interrupting capacity, larger frame sizes
Sub-Distribution	Secondary power distribution	Mix of breaker sizes, selective coordination
Motor Control Center	Motor starting and protection	Combination with contactors and overload relays
Lighting Panel	Lighting circuit control	Multiple smaller MCCBs, sometimes with control systems
Power Factor Correction	Power factor improvement	Integration with capacitor banks and control systems

The Importance of Proper Panel Assembly

The assembly quality of an MCCB panel directly impacts its performance and safety. Key considerations include:

• Heat Management⁹: Proper spacing and ventilation to prevent temperature rise
• Short Circuit Coordination: Breaker placement and busbar design to withstand fault currents
• Accessibility: Layout that allows for maintenance and future modifications
• Protection Coordination¹⁰: Proper selection and arrangement of breakers for selective tripping

I've seen firsthand how poorly designed panels can lead to premature failures. One manufacturing client was experiencing mysterious breaker trips during summer months. Investigation revealed inadequate ventilation in their MCCB panel, causing thermal issues when ambient temperatures increased. A properly designed panel would have accounted for this with appropriate ventilation and component spacing.

What does triple pole mean?

Are you confused about electrical terminology when it comes to poles in circuit breakers? The term "triple pole" has specific meaning that's important for anyone working with three-phase systems. Let's clarify what this means.

"Triple pole" refers to a circuit breaker configuration with three separate current paths (poles) controlled by a single operating mechanism, designed specifically for three-phase power systems where each pole protects and controls one phase of the power supply.

When explaining this concept to clients, I often use the analogy of a three-lane highway with a single traffic light controlling all lanes. Each lane (or pole) handles its own traffic (current), but the control system (breaker mechanism) coordinates all three simultaneously.

Understanding Poles in Circuit Breakers

In circuit breaker terminology, a "pole" represents a current path through the breaker with its own set of contacts and interrupting chamber. The number of poles corresponds to the number of separate conductors the breaker can control:

1. Single-Pole: Controls one current-carrying conductor, typically used in residential applications for 120V circuits.
2. Double-Pole: Controls two current-carrying conductors, used for 240V single-phase circuits.
3. Triple-Pole¹¹: Controls three current-carrying conductors, designed specifically for three-phase systems.
4. Four-Pole: Controls three phases plus neutral, sometimes required in specific applications.

Key Characteristics of Triple-Pole Breakers

What makes triple-pole breakers special:

1. Three Independent Interrupting Chambers: Each phase has its own dedicated set of contacts and arc extinction chamber.

2. Common Trip Mechanism¹²: All three poles are mechanically linked internally so that if one pole trips, all three trip simultaneously.

3. Single Operating Handle: Despite controlling three separate circuits, there is only one handle for manual operation.

4. Three-Phase Compatibility¹³: Specifically designed for the unique characteristics and requirements of three-phase power systems.

5. Balanced Protection¹⁴: Provides identical protection characteristics across all three phases.

Feature	Technical Implementation	Benefit
Common Trip	Internal mechanical linkage between poles	Prevents dangerous phase imbalance conditions
Phase Isolation	Separate interruption chambers with barriers	Prevents phase-to-phase faults within the breaker
Simultaneous Switching	Synchronized contact movement	Minimizes transient voltages during switching
Three-Phase Rated	Tested for three-phase fault interruption	Ensures proper performance under real-world conditions
Compact Design	Integrated three-pole construction	Saves panel space compared to three single-pole units

During a recent industrial plant upgrade, I worked with a client who was confused about why they couldn't simply use three single-pole breakers instead of a triple-pole breaker. I explained that while technically possible (with handle ties), this approach doesn't provide the same level of protection or performance. Triple-pole breakers are specifically designed and tested for three-phase applications, with internal mechanisms optimized for simultaneous operation and proper phase isolation.

The triple-pole design ensures that all three phases are treated as a single unit, which is essential for proper protection of three-phase equipment. This is particularly important in industrial settings where equipment damage from phase loss or imbalance can be extremely costly.

How many poles are there in a MCCB?

Are you trying to select the right MCCB for your application but unsure about pole configurations? MCCBs come in various pole arrangements to match different power system requirements. Understanding these options is essential for proper system design.

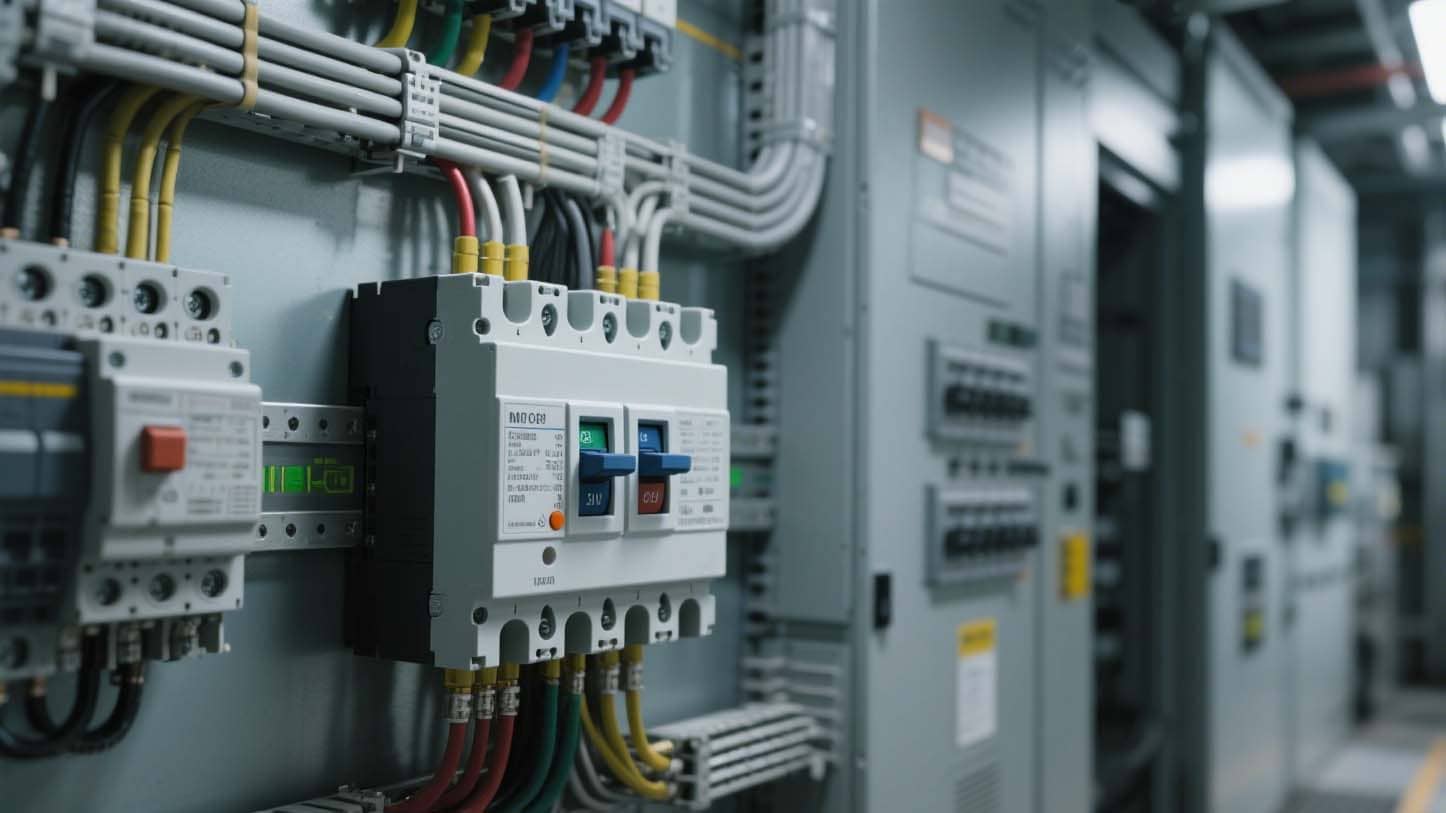

MCCBs are available in 1, 2, 3, and 4-pole configurations, with 3-pole being the most common for industrial applications. The number of poles matches the number of current paths the breaker can control and protect, corresponding to the power system configuration.

Recently, I helped a client retrofit an old manufacturing facility where there was confusion about which MCCBs to use in different parts of the electrical system. The facility had a mix of single-phase and three-phase loads, plus some specialized equipment requiring neutral protection.

MCCB Pole Configurations and Applications

MCCBs are available in several standard pole configurations, each designed for specific applications:

1. Single-Pole MCCBs (1P)¹⁵

   • Protect and control a single current-carrying conductor
   • Typically used in low-power applications or for individual branch circuits
   • Common in residential or light commercial applications
   • Current ratings usually up to 100A

2. Double-Pole MCCBs (2P)¹⁶

   • Protect and control two current-carrying conductors
   • Used for single-phase line-to-line circuits (240V in North America)
   • Common in commercial applications for higher power single-phase equipment
   • Often used for phase-to-phase protection in smaller three-phase systems without neutral

3. Triple-Pole MCCBs (3P)¹⁷

   • Protect and control three current-carrying conductors
   • Standard configuration for three-phase systems without neutral switching
   • Most common in industrial applications and three-phase distribution systems
   • Available in current ratings from 16A to 3200A

4. Four-Pole MCCBs (4P)¹⁸

   • Protect and control three phases plus neutral
   • Used in systems where neutral switching or protection is required
   • Common in critical applications or where neutral currents are a concern
   • Available in two varieties:
     • 3P+N: Where neutral has different (usually lower) protection settings
     • 4P: Where neutral has the same protection as the phase conductors

Selecting the Right Pole Configuration

The selection of MCCB pole configuration depends on several factors:

System Type	Recommended MCCB	Reasoning
Single-phase, line-to-neutral	1-pole	Protects the hot conductor only
Single-phase, line-to-line	2-pole	Protects both hot conductors
Three-phase without neutral	3-pole	Protects all three phases
Three-phase with non-distributed neutral	3-pole	Neutral doesn't require switching
Three-phase with distributed neutral	4-pole	Provides neutral switching and protection
Critical electronic loads	4-pole	Ensures complete isolation including neutral

Special Considerations for Pole Selection

In my experience consulting on industrial electrical systems, I've found several factors that influence the pole configuration decision beyond the basic system type:

1. Harmonic Content¹⁹: Systems with high harmonic content may require 4-pole MCCBs even in three-phase systems to protect against elevated neutral currents.

2. Isolation Requirements: Some maintenance procedures require complete isolation including neutral, necessitating 4-pole breakers.

3. Ground Fault Protection²⁰: Certain ground fault protection schemes work better with specific pole configurations.

4. Regulatory Requirements: Some jurisdictions have specific requirements for neutral switching in certain applications.

I worked with a data center client who initially specified standard 3-pole MCCBs throughout their facility. After analyzing their loads, I recommended changing to 4-pole MCCBs for their server power distribution to properly handle the high harmonic currents their equipment generated. This simple change prevented several potential issues with neutral overheating.

The pole configuration is not just about matching the basic system type—it's about understanding the specific protection and operational requirements of the application. Choosing correctly ensures both safety and optimal system performance.

Conclusion

Triple-pole MCCB panel assemblies are essential components for three-phase power protection. They provide simultaneous disconnection of all phases during faults, preventing equipment damage and ensuring safety. Choose the right configuration based on your specific power system and protection needs.
