Power distribution problems keeping you up at night? Many engineers underestimate the importance of busbar material choice, leading to efficiency losses and reliability issues.
A copper busbar is primarily used for distributing electrical power efficiently in electrical panels, substations, and switchgear. These solid metal bars conduct and distribute large currents while minimizing voltage drops, connecting power sources to multiple circuits with excellent thermal stability and conductivity.
I work with busbars daily at Fuspan, where we manufacture and supply them for various applications. I've seen firsthand how these seemingly simple components form the backbone of reliable electrical systems. Whether in renewable energy projects or industrial installations, copper busbars offer specific advantages that make them the preferred choice for many critical applications.

What is the best material for a busbar?

Confused about which busbar material to choose? Making the wrong selection can lead to overheating, energy losses, and premature system failures that end up costing much more than the initial savings.
Copper is generally considered the best material for busbars due to its excellent electrical conductivity (97% IACS), superior heat dissipation, and mechanical strength. While aluminum is lighter and less expensive, copper's performance advantages make it optimal for critical applications where reliability is paramount.
In my work supplying components for large-scale projects, I've noticed that material selection often comes down to balancing initial costs against long-term performance. Each material has its place, but understanding the full picture helps make the right decision.

Material Performance Considerations

When selecting busbar materials, conductivity is just the starting point. I've found that thermal behavior under load¹ is equally crucial. Copper maintains its mechanical properties at higher temperatures than aluminum, making it more reliable in demanding environments. In one project I handled, we replaced aluminum busbars with copper ones because the system was running too hot under peak loads, causing connection points to loosen over time.
Beyond the metal itself, the manufacturing process matters significantly. At Fuspan, we ensure our copper busbars² are properly annealed to maintain flexibility while preserving strength. The busbar's cross-sectional design also impacts performance – we often recommend shaped profiles rather than simple rectangles for better heat dissipation in high-current applications.
Environmental factors play a huge role too. In coastal installations we've supplied, where salt air causes rapid corrosion, material choice becomes even more critical. Standard copper naturally develops a protective patina, but sometimes additional treatments are necessary. I remember a Saudi Arabian project where the excessive heat and occasional humidity required special surface treatments to maintain connection quality over time.

What is the difference between copper and tinned copper busbars?

Wondering if tinned copper busbars are worth the extra cost? Many installers skip this option without understanding the long-term implications, particularly in harsh environments.
The main difference is that tinned copper busbars have a thin layer of tin applied to the copper surface, providing enhanced corrosion resistance and improved connection stability over time. While bare copper offers slightly better conductivity (about 2-3% higher), tinned copper maintains better long-term performance in humid or corrosive environments.

I've seen this choice make a significant difference in system longevity, especially in industrial settings where environmental factors come into play. The decision affects not just performance but maintenance schedules as well.

Practical Implications of Tinning

In my experience working with various installations, the tinning process creates several practical advantages beyond simple corrosion protection. First, tinned surfaces significantly reduce contact resistance at connection points. We've measured this difference in our testing facility at Fuspan, finding that while new connections show minimal difference, after aging tests (thermal cycling and humidity exposure), tinned connections maintain lower resistance values than bare copper ones.
Tinning also prevents galvanic corrosion³ when connecting to aluminum components. I recall a solar farm project where the customer initially specified bare copper busbars connecting to aluminum terminals. We recommended switching to tinned copper, which prevented the accelerated corrosion that would have occurred at these dissimilar metal junctions. This simple change likely extended the maintenance-free life of the connections by several years.
The solderability⁴ factor is another consideration that often gets overlooked. For applications where connections might need modification or repair in the future, tinned copper⁵ accepts solder much more readily than bare copper. On a telecommunications installation I consulted on, this feature proved valuable when the system needed expansion after just two years – the tinned busbars could be modified without complete replacement.
One downside I should mention from practical experience: tinned copper can be more difficult to visually inspect for overheating. The distinctive discoloration that occurs on bare copper when it overheats (turning from reddish to brown/black) is less obvious on tinned surfaces. This means thermal imaging becomes more important for maintenance checks with tinned systems.

Which is better brass or copper busbar?

Confused between brass and copper busbars? Choosing the wrong material based solely on price or availability can lead to unexpected system inefficiencies and potentially costly replacements down the line.

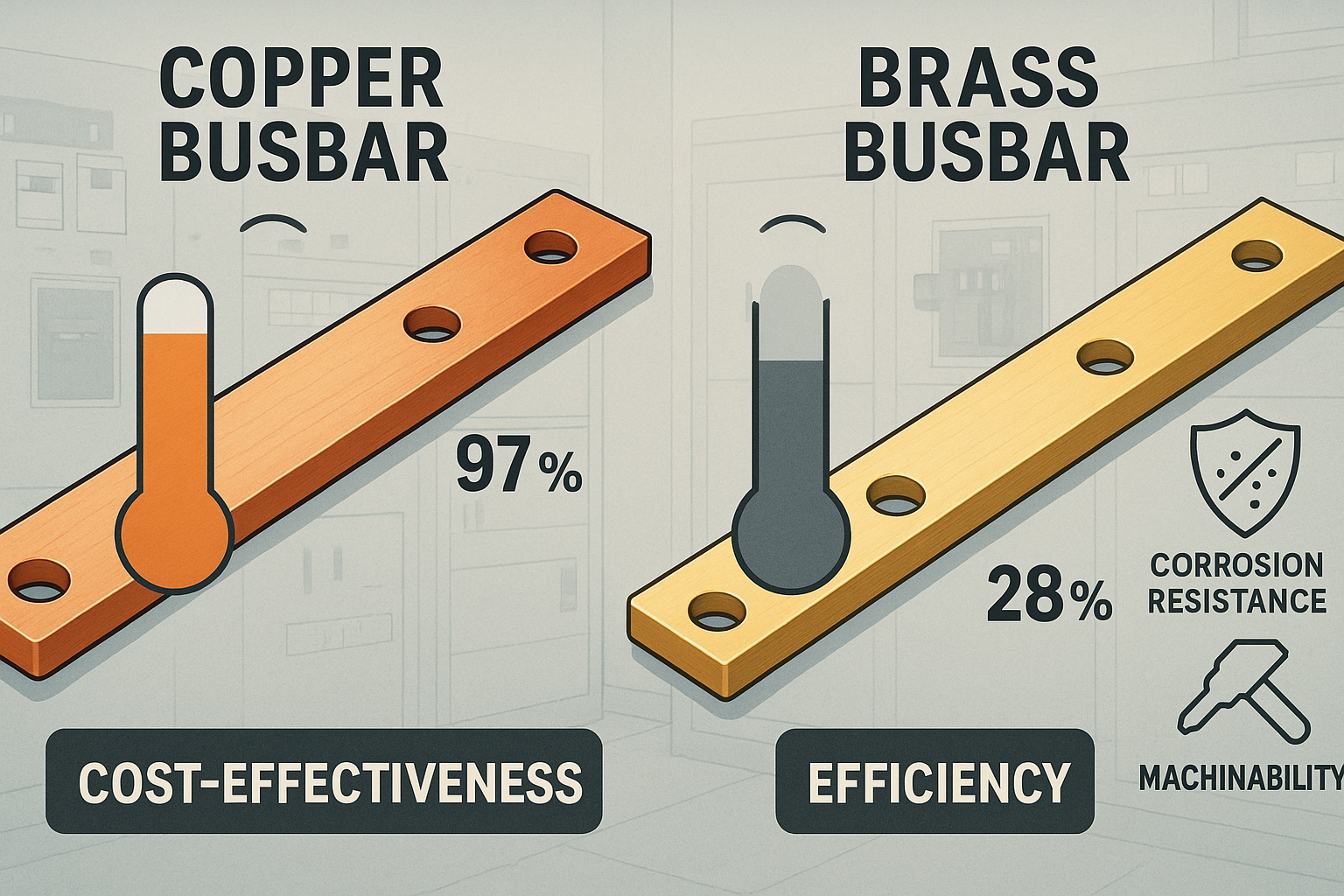

Copper busbars are generally better than brass for most electrical applications due to copper's superior conductivity (97% vs. 28% IACS for brass). While brass offers better corrosion resistance and machinability, pure copper's higher conductivity makes it more efficient and cost-effective for primary power distribution.

The choice between these materials isn't always straightforward. Through my experience with different installation environments, I've found that each has specific applications where it excels.

Comparing Performance Characteristics

Through numerous projects I've supervised at Fuspan, I've observed the practical differences between copper and brass busbars in real-world applications. Copper's significantly higher conductivity translates to tangible benefits: lower operating temperatures and reduced energy losses. In one industrial installation, replacing brass busbars with copper ones of the same dimensions reduced operating temperatures by almost 30°C under full load conditions.
Brass, being an alloy of copper and zinc (typically 60-70% copper), sacrifices conductivity but gains mechanical advantages. It's harder, more rigid, and easier to machine into complex shapes. For connection terminals and smaller busbar components that need threading or detailed machining, brass can be the better option. I've recommended brass for applications where mechanical strength and thread durability are more important than maximum conductivity.
Corrosion resistance is another important factor I consider when advising clients. In certain environments with specific chemical exposures, brass can outperform pure copper. For example, in a water treatment facility project where exposure to certain chemicals was inevitable, we selected brass components⁶ for specific connection points despite the conductivity trade-off.
Cost considerations extend beyond the material itself. While brass is generally less expensive per kilogram than copper, you often need a larger cross-section of brass to match copper's current-carrying capacity. This means the initial cost advantage isn't always as significant as it first appears. Additionally, the higher resistance of brass means more energy is lost as heat during operation – a hidden operational cost that many overlook.
Temperature stability is another factor I've had to consider in extreme environments. Copper maintains its mechanical integrity better at high temperatures, while brass can soften more readily. In high-current applications where thermal cycling occurs, this can lead to connection points loosening over time with brass components.

What are the advantages of copper busbars?

Considering alternatives to copper busbars to save costs? Many projects make this mistake only to face higher operational expenses, reliability issues, and premature system aging.
Copper busbars offer exceptional conductivity (97% IACS), superior thermal management, excellent mechanical durability, natural corrosion resistance, and long-term value despite higher initial costs. Their ability to handle high current densities while maintaining dimensional stability makes them ideal for critical electrical systems.

Through my work with various electrical distribution systems, I've consistently seen these advantages translate to real-world benefits that justify the investment in copper over alternatives.

Comprehensive Benefits in Real Applications

Working with various busbar materials throughout my career at Fuspan, I've documented tangible advantages of copper that extend beyond simple specifications. Energy efficiency is perhaps the most significant long-term benefit. In a large data center installation we supplied components for, calculations showed that the reduced power losses from using copper instead of aluminum busbars saved approximately 3% of total energy consumption – a seemingly small percentage that translated to thousands of dollars annually in operating costs.
Connection reliability is another crucial advantage I've witnessed. Copper's excellent creep resistance means that properly torqued connections stay tight over time, even with thermal cycling. This property has proven invaluable in renewable energy installations where daily temperature fluctuations are significant. One solar farm project we worked on initially specified aluminum to save costs, but after experiencing connection issues during the first year, they switched to copper busbars for all subsequent phases.
The space efficiency⁷ of copper systems is often overlooked but extremely valuable in tight installations. Because copper can carry more current per cross-sectional area, the busbar systems can be more compact. In an urban substation project with severe space constraints, using copper allowed for a 30% reduction in the overall footprint of the power distribution system compared to the aluminum alternative initially proposed.
Copper's natural antimicrobial properties, while not directly related to electrical performance, provide an additional benefit in certain applications. In a hospital electrical system we supplied components for, this was considered a secondary advantage in areas where maintenance personnel would regularly interact with the equipment.
The recyclability and circular economy aspects of copper make it environmentally responsible despite its higher initial embodiment energy. With a recycling value approaching 90% of new copper, these busbars retain significant end-of-life value. We've even worked with clients on take-back programs for major renovations, providing credit toward new systems when old copper components are returned.

Conclusion

Copper busbars remain the gold standard for electrical power distribution due to their exceptional conductivity, thermal stability, and long-term reliability. While alternatives exist for specific applications, copper's overall performance advantages make it the optimal choice for critical electrical systems.
