PV-30DL PV Fuse Holder is used in photovoltaic combiner boxes, inverters, etc. to safely protect 1000VDC photovoltaic (PV) systems.

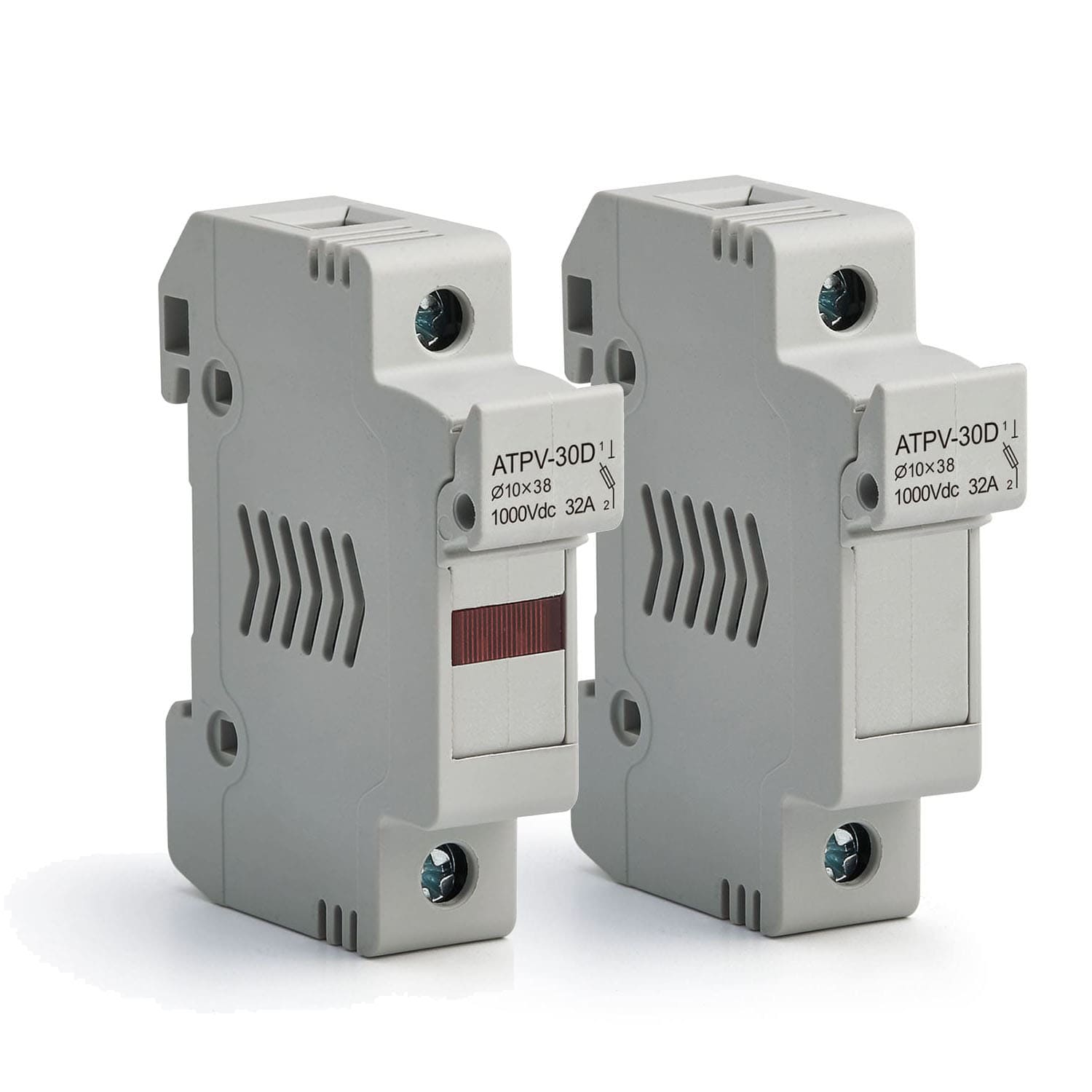

PV-30D 1000VDC 10x38mm PV Fuse Holder No lights and With Indicator measures.
gPV
• Combiner box
• PV string, PV array protection
• Inverters
• Battery charge controllers
• Re-combiner units
• In-line PV module protection
Do not operate under load
Use 75℃ CU wire only
| Fuse base model No. | Equipped with fuse size | Rated Voltage | Rated Current | Figure no. | Dimensions/Size (mm) | Dissipated power(W) | Remarks |

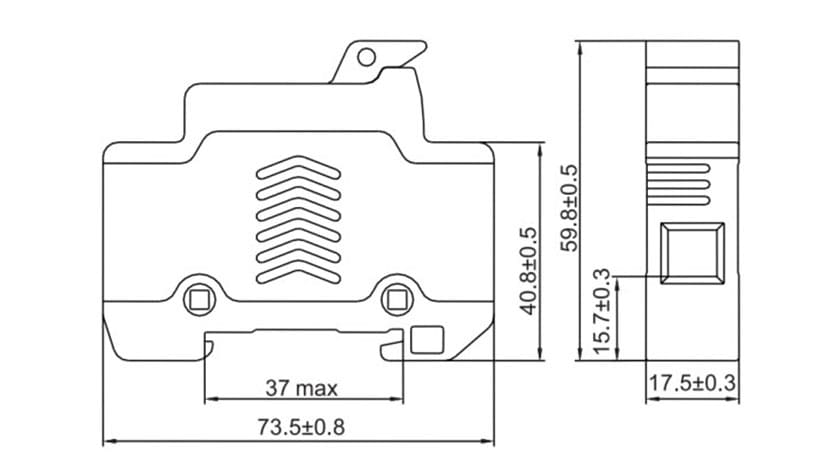

| ATPV-30D | 10×38 | 1000Vdc | 32A | 1 | See figure 1 | 4.5W | Without indicator |
| ATPV-30DL | 10×38 | 1000Vdc | 32A | 1 | See figure 1 | 4.5W | With indicator |
