DB06 series distribution board box,1-3 phase box series,Available in 4/6/8/12 ways,Wall-mounted enclosure structure,Modular spaces for MCB installation,For power distribution and protection,Supports direct wiring applications,Built for indoor/outdoor installations.

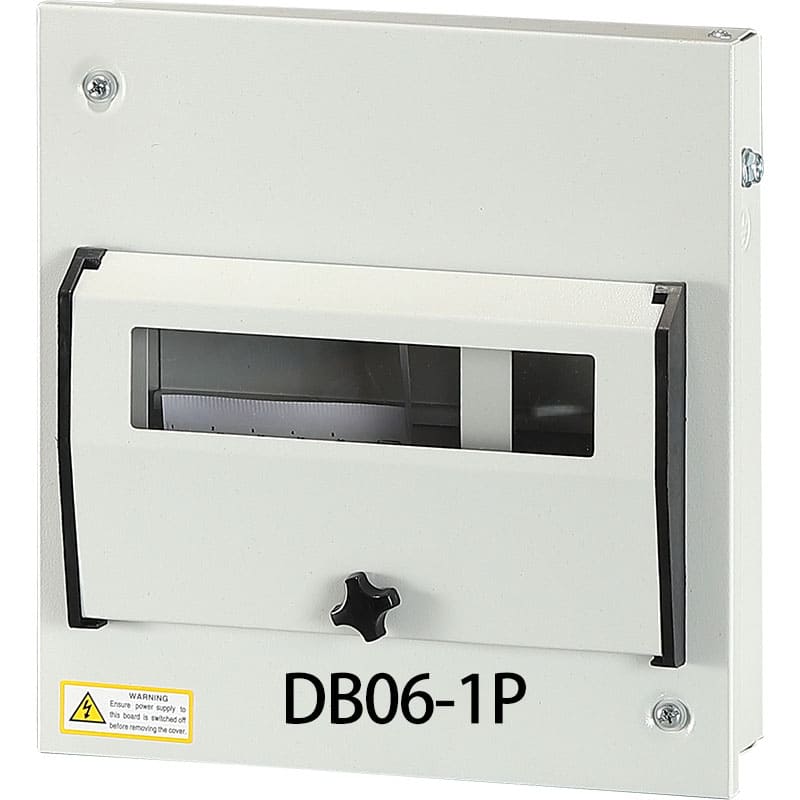

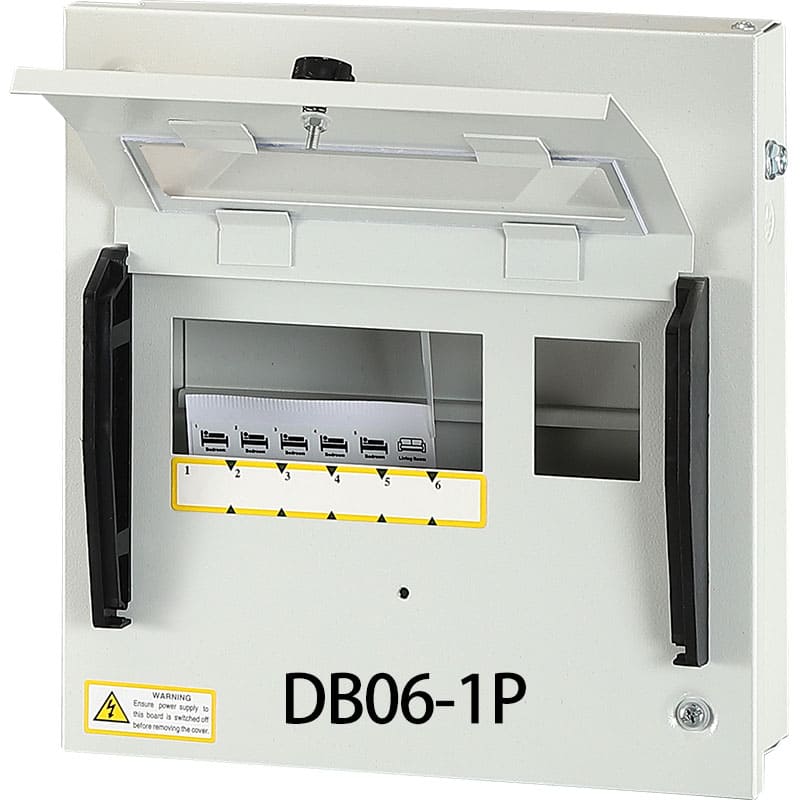

1P models: DB06-1P-4W to 12W.
1P size: H=251mm, D=85mm.
1P widths: 204/240/276/348mm.

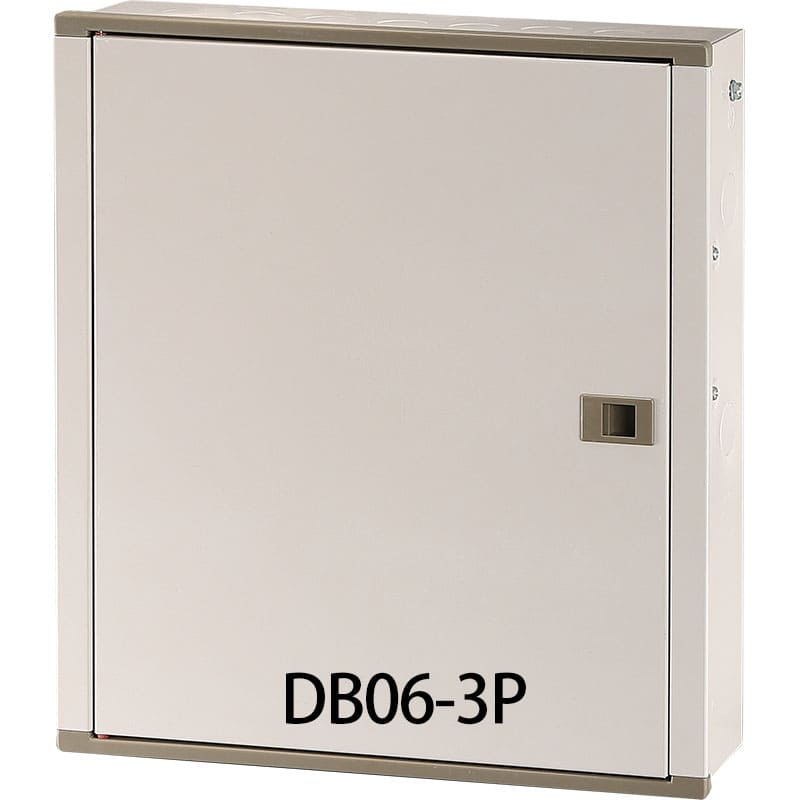

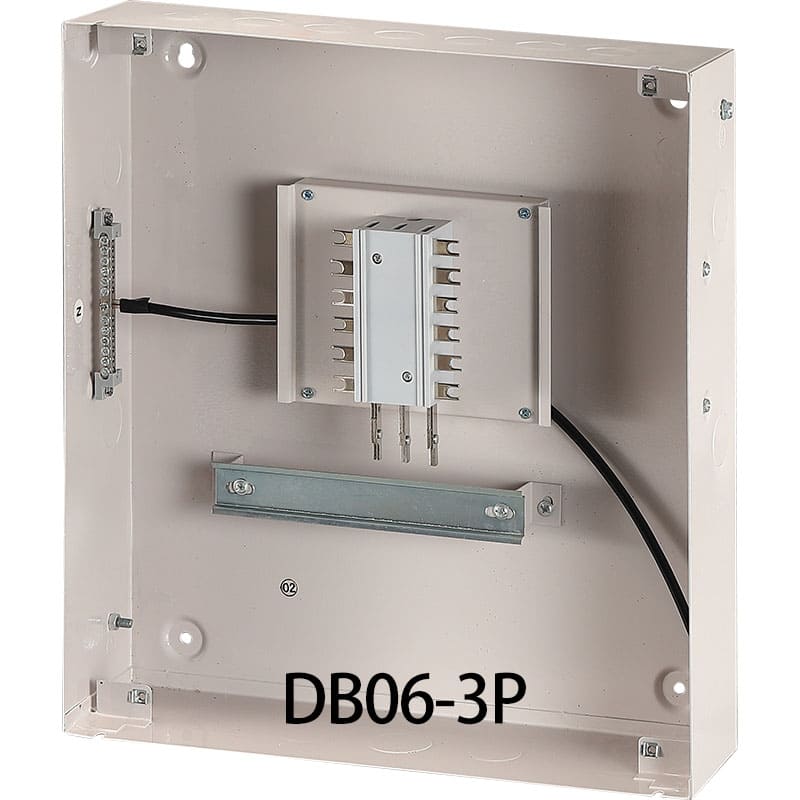

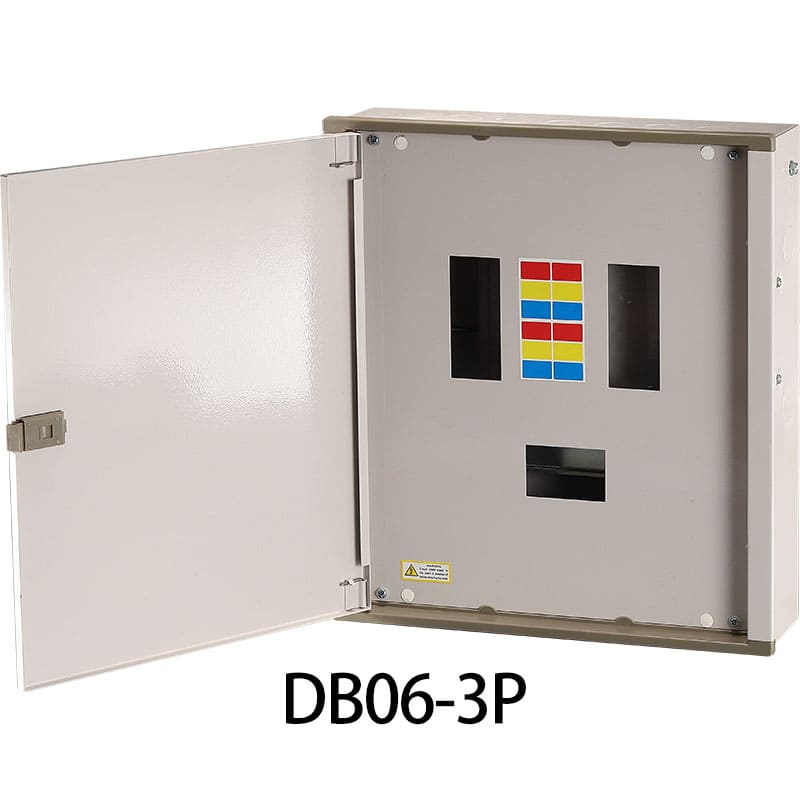

3P models: DB06-3P-4W to 12W.
3P width fixed: W=405mm.
3P depths: D=109mm.
3P heights: 452/506/560/668mm.
Neutral & earth terminal blocks possible.
Typical ratings up to 400V available

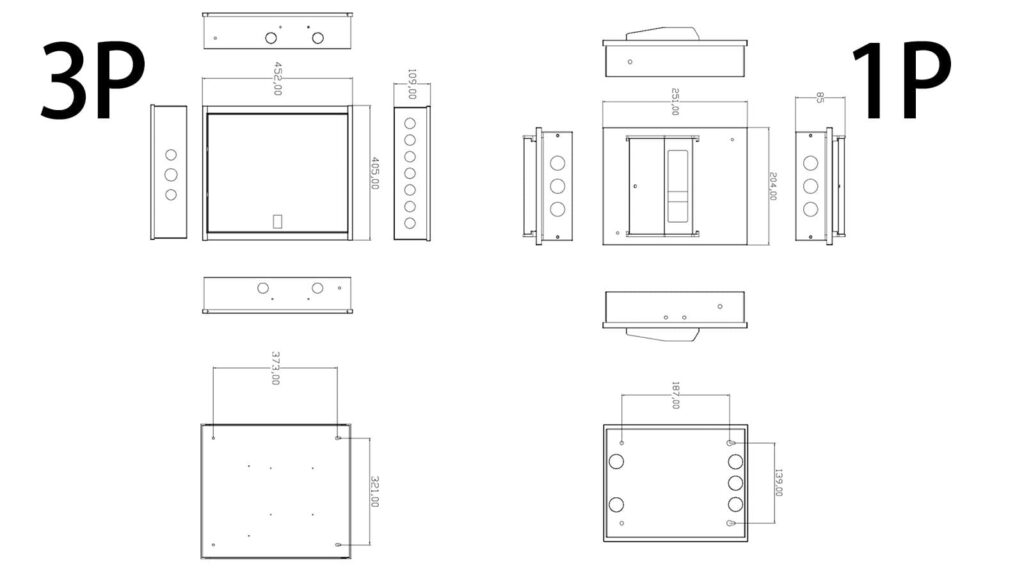

| Model | No.of ways | Dimensions(mm) | ||
| W | H | D | ||
| DB06-1P-4W | 4 ways | 204 | 251 | 85 |
| DB06-1P-6W | 6 ways | 240 | 251 | 85 |
| DB06-1P-8W | 8 ways | 276 | 251 | 85 |
| DB06-1P-12W | 12 ways | 348 | 251 | 85 |
| Model | No.of ways | Dimensions(mm) | ||
| W | H | D | ||
| DB06-3P-4W | 4 ways | 405 | 452 | 109 |
| DB06-3P-6W | 6 ways | 405 | 506 | 109 |
| DB06-3P-8W | 8 ways | 405 | 560 | 109 |
| DB06-3P-12W | 12 ways | 405 | 668 | 109 |
