DB04 3 Phase Distribution Box

Distribution Box Series

Key Features

Plug‑in FP04 single/three phase boards.
Single and three phase options.
4–12 ways for flexible circuits.
Compact flush‑mount design.
Neat wiring, reduced assembly time.
Compatible with standard MCBs.
Custom configurations available.

Product Details

Product Description

Series: FP04 plug‑in distribution box.
Type: 1P and 3P plug‑in DB boards.

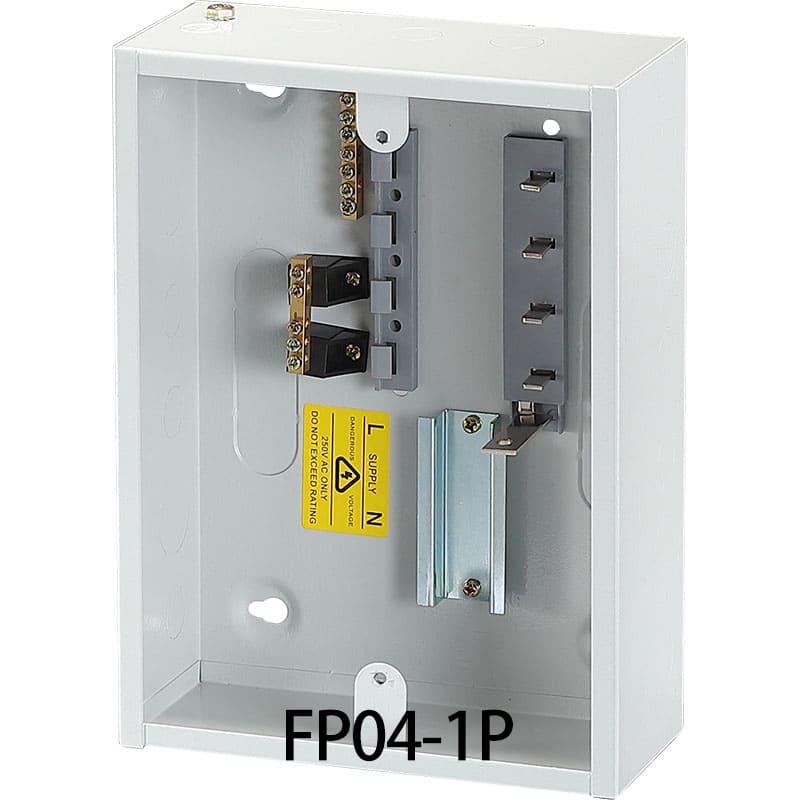

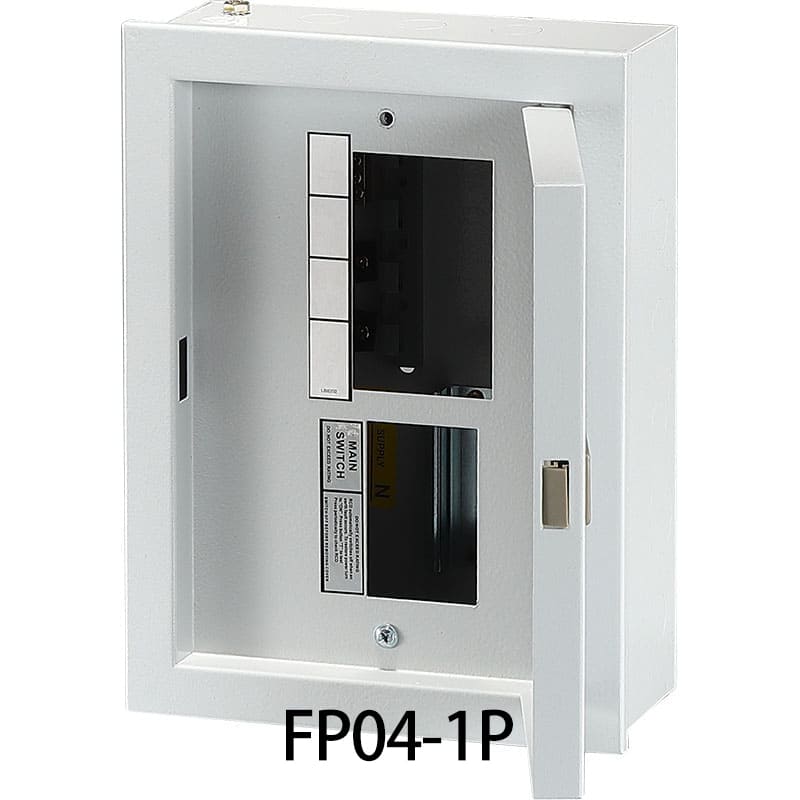

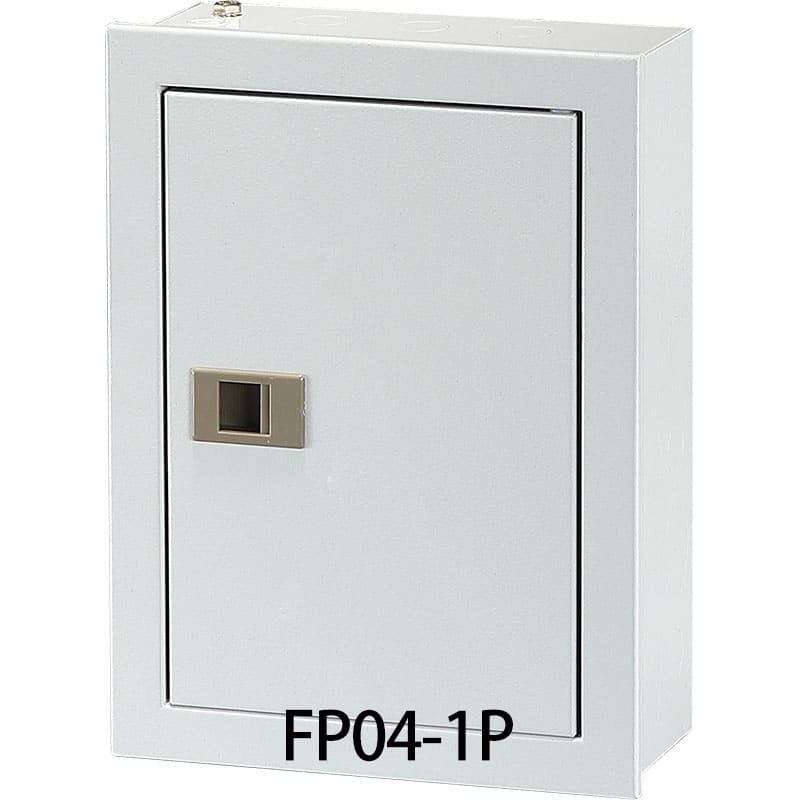

1P width 281–481 mm, depth 89 mm.
1P height fixed at 208 mm.

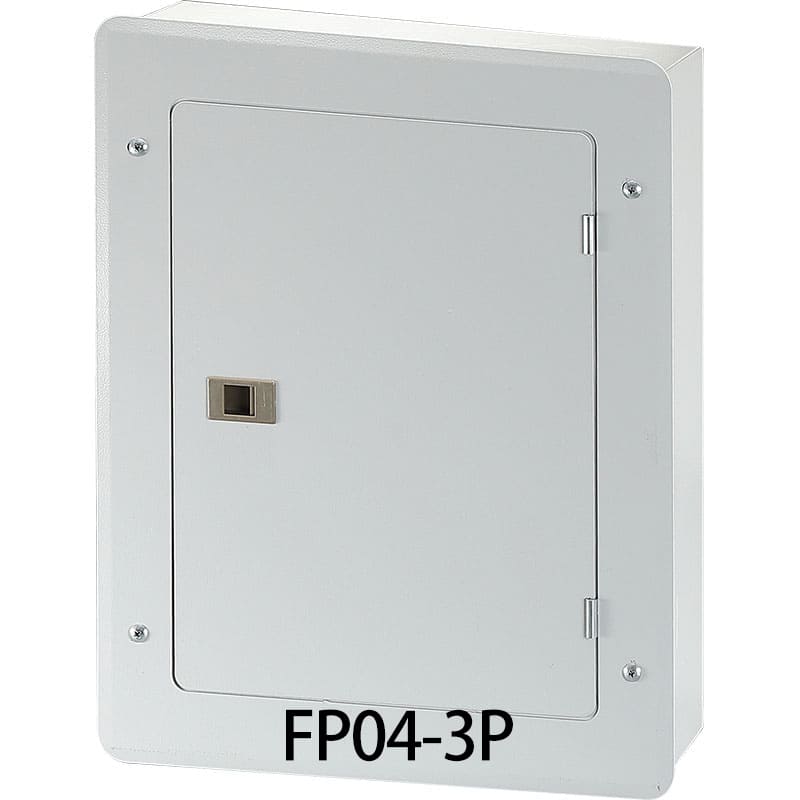

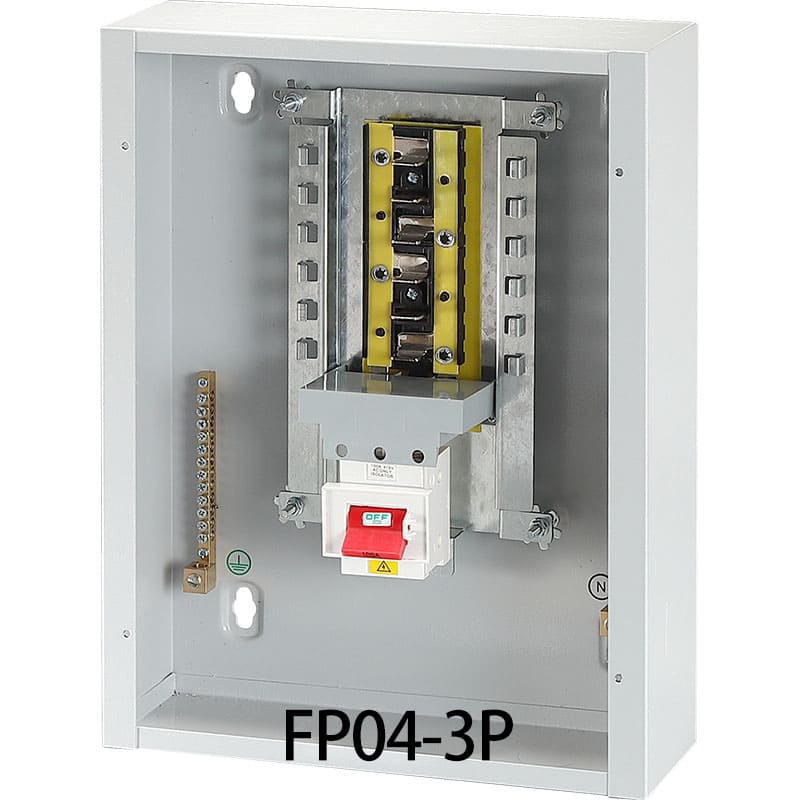

3P width 380 mm, depth 122 mm.
3P height 485–785 mm range.
Models: 4W, 6W, 8W, 12W ways.

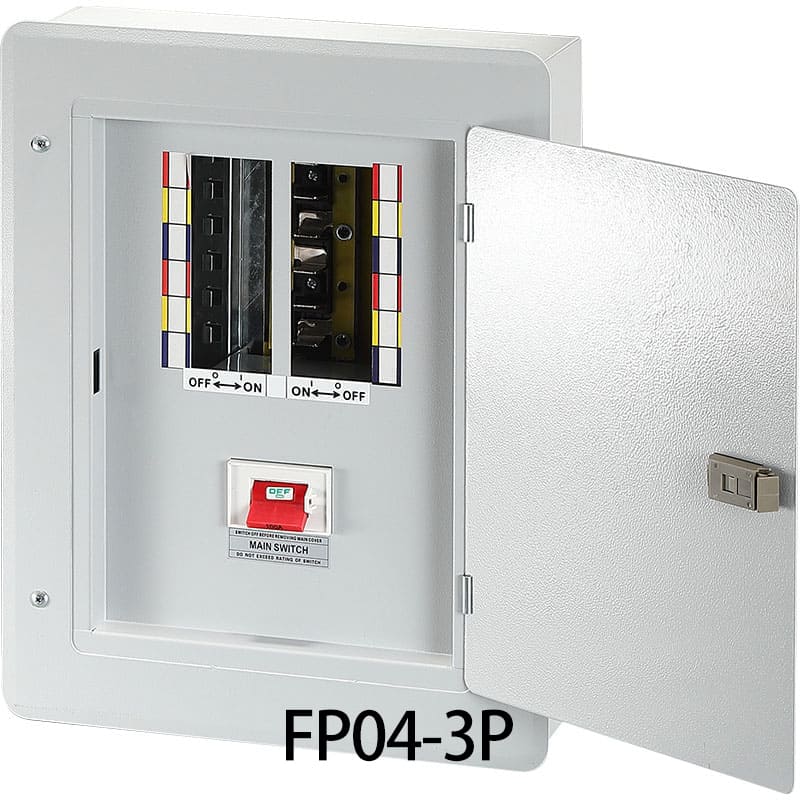

Front door with recessed handle.
Multiple top and bottom knockouts.
Surface or flush wall mounting.

Technical Parameters

Model	No.of ways	Dimensions(mm)
Model	No.of ways	W	H	D
FP04-1P-4W	4 ways	281	208	89
FP04-1P-6W	6 ways	331	208	89
FP04-1P-8W	8 ways	381	208	89
FP04-1P-12W	12 ways	481	208	89
Model	No.of ways	Dimensions(mm)
Model	No.of ways	W	H	D
FP04-3P-4W	4 ways	380	485	122
FP04-3P-6W	6 ways	380	560	122
FP04-3P-8W	8 ways	380	635	122
FP04-3P-12W	12 ways	380	785	122
